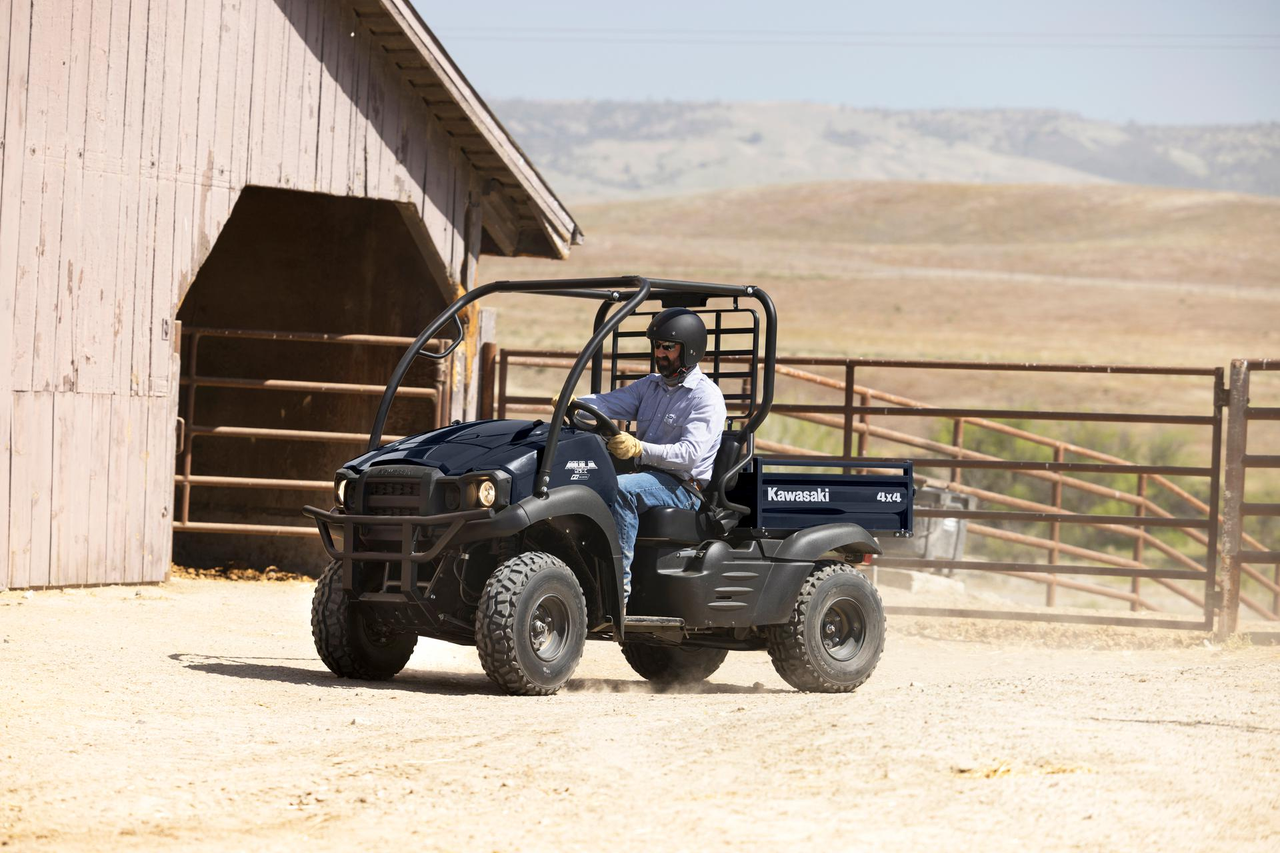

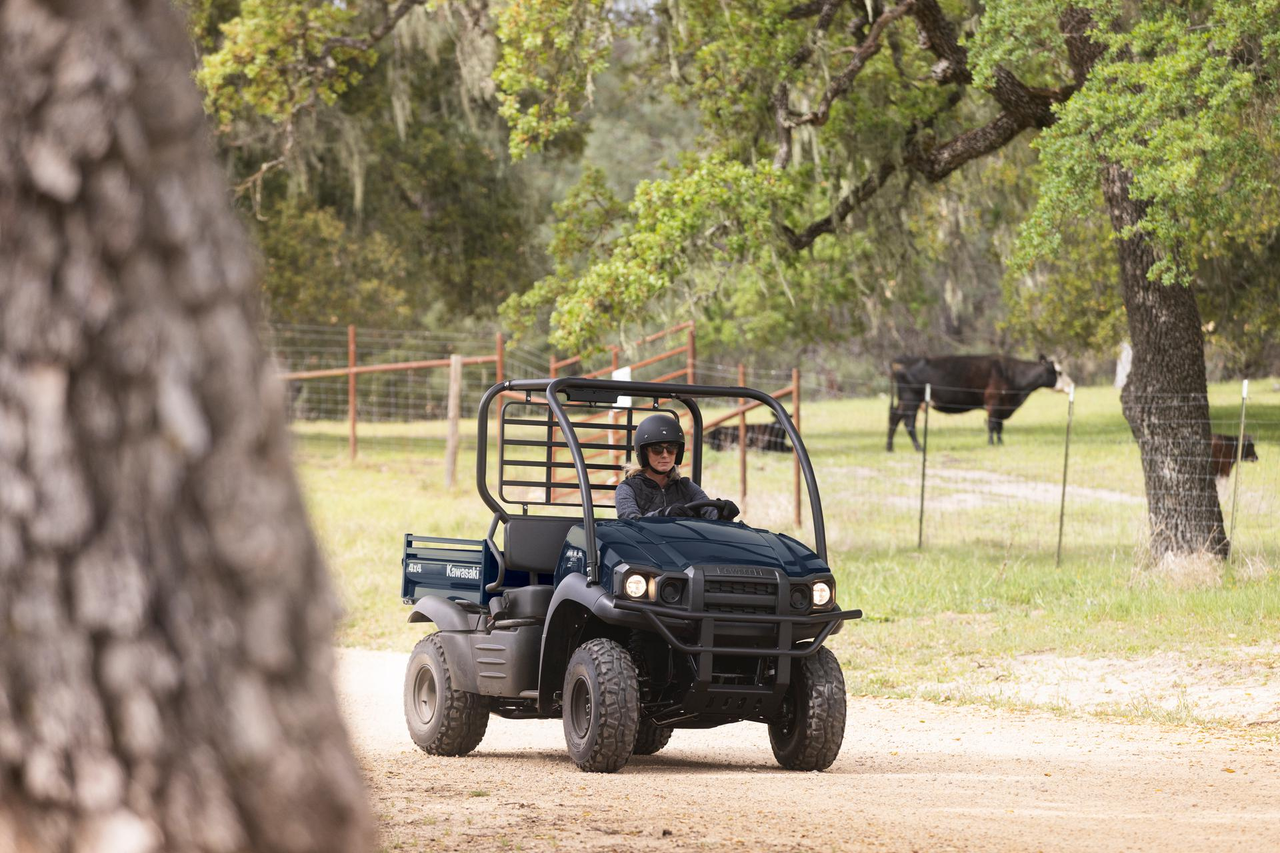

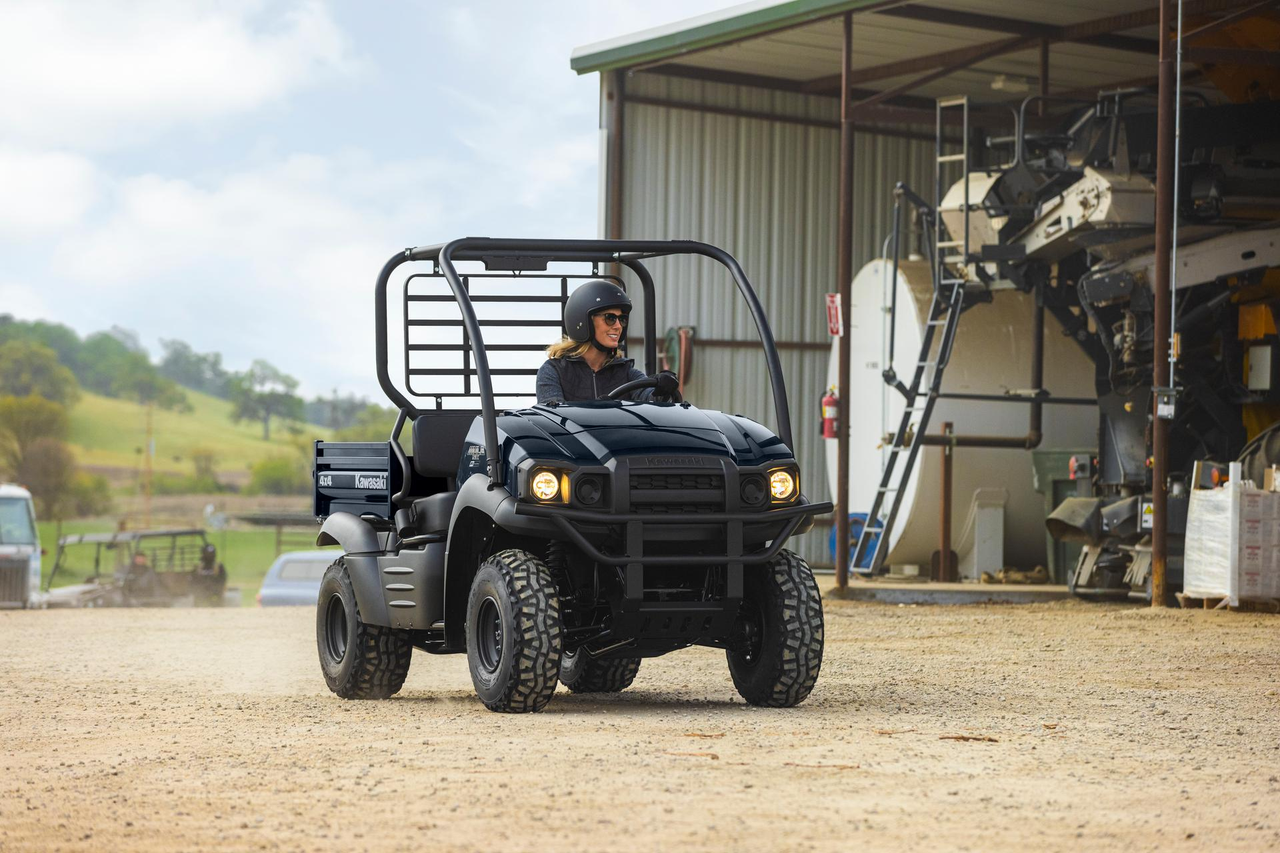

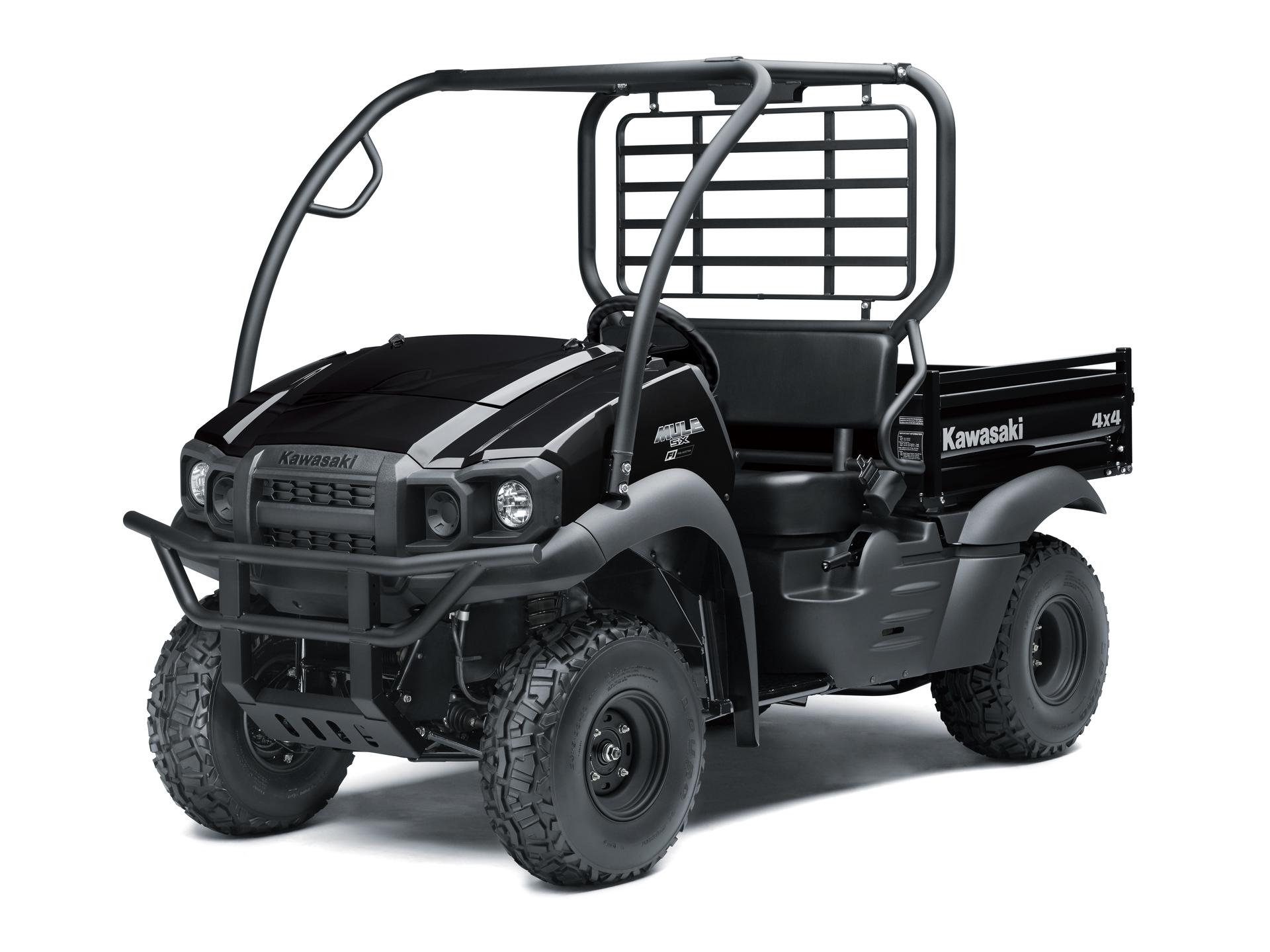

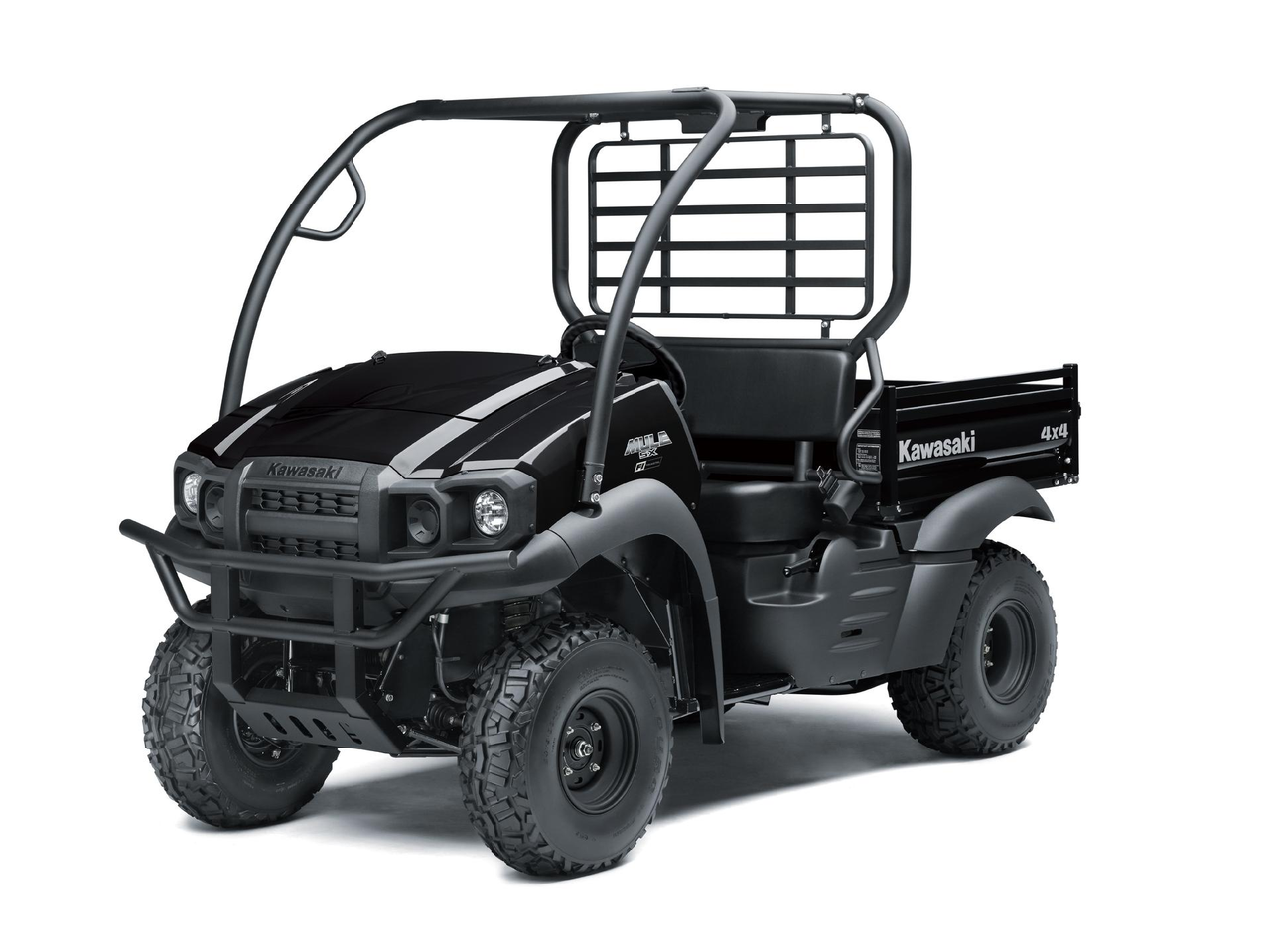

Pickup truck style front hood, front grill and headlamp design modelled after the PRO Series MULE flagship models give the MULE SX models a tougher, rugged image like their bigger brethren.

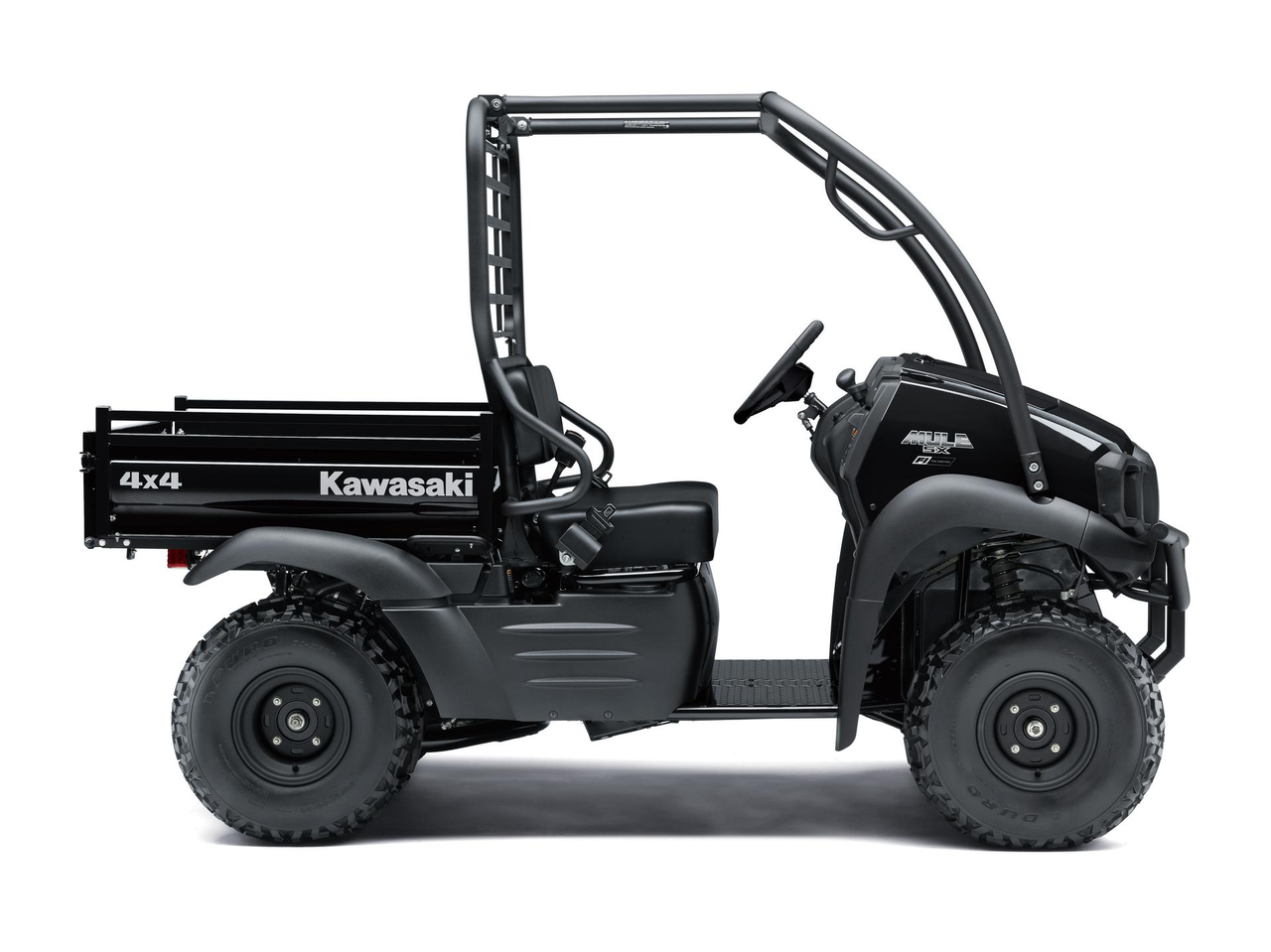

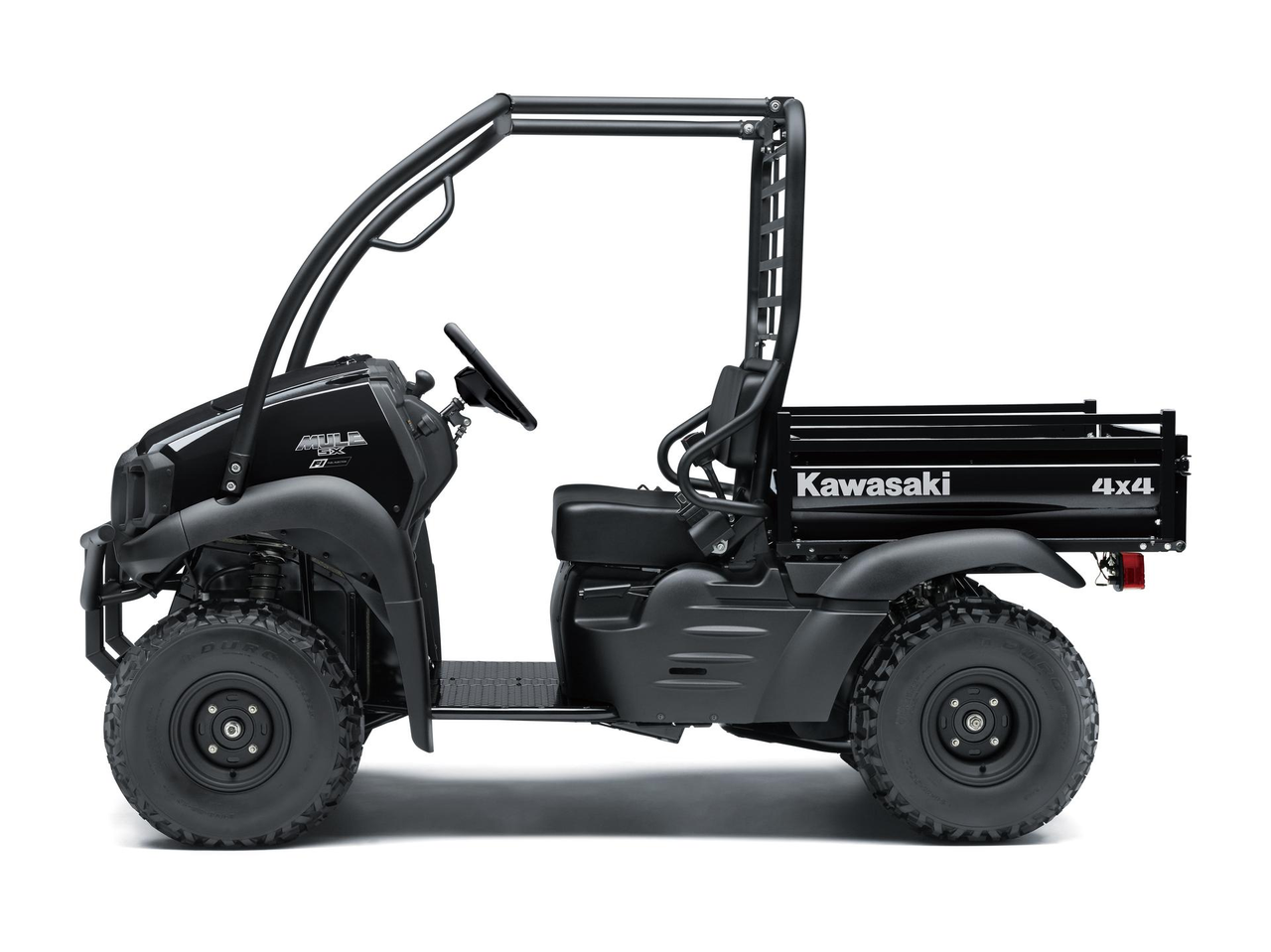

Overall width is 1,335 mm; length is 2,710 mm. Tread measures 1,055 mm (front) and 1,000 mm (rear). Wheelbase is 1,780 mm.

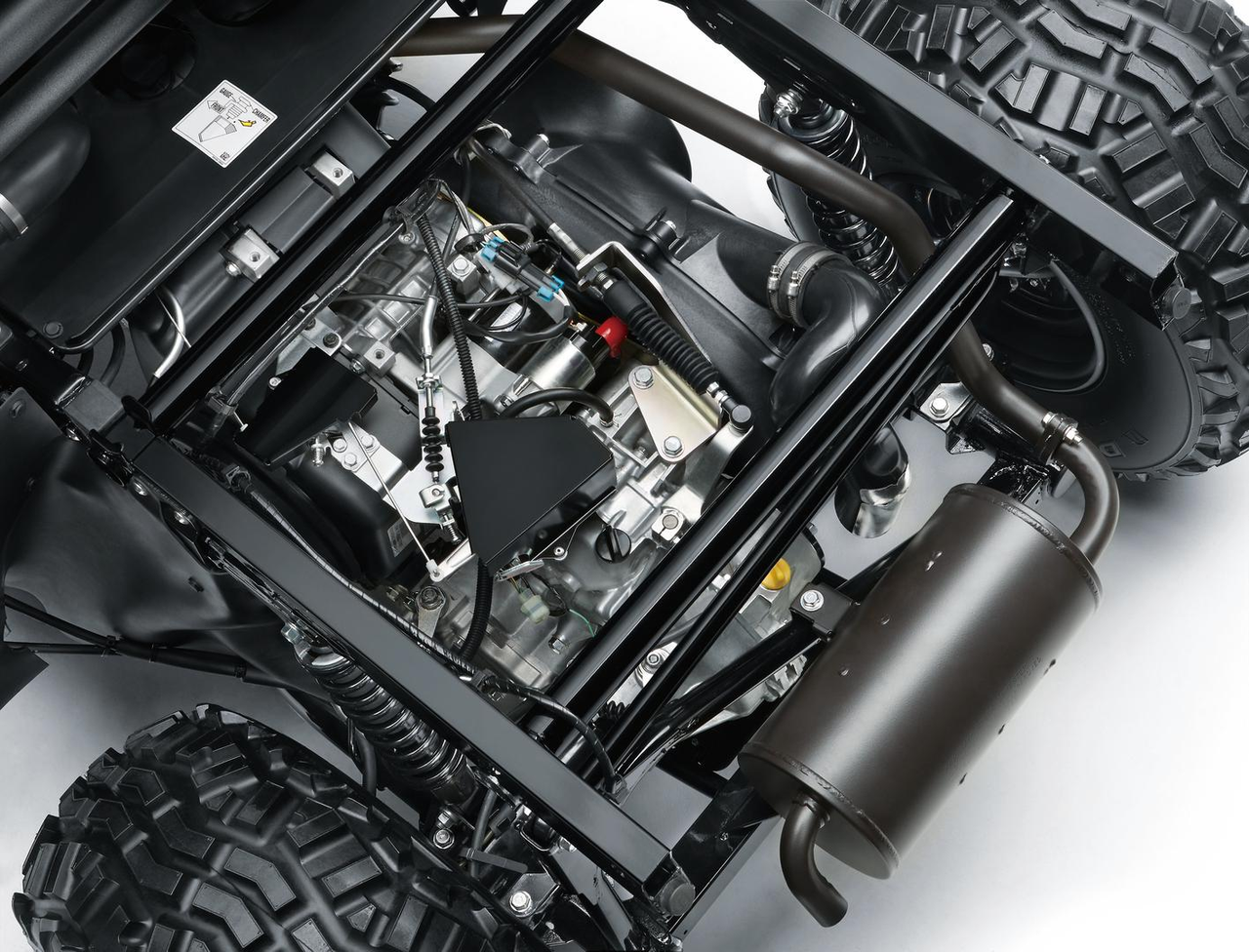

The MULE SX is powered by a 401 cm3, 4-stroke, OHV, air-cooled engine. Compact, lightweight and durable, the engine is extremely reliable.

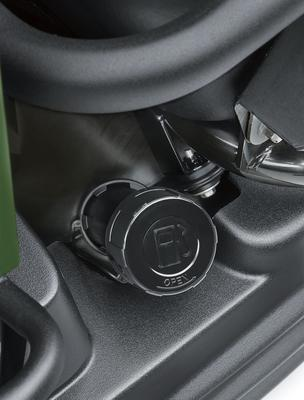

16-litre fuel tank gives the fuel-efficient MULEs ample operating range. Redesigned fuel tank filler hole makes refuelling much easier.

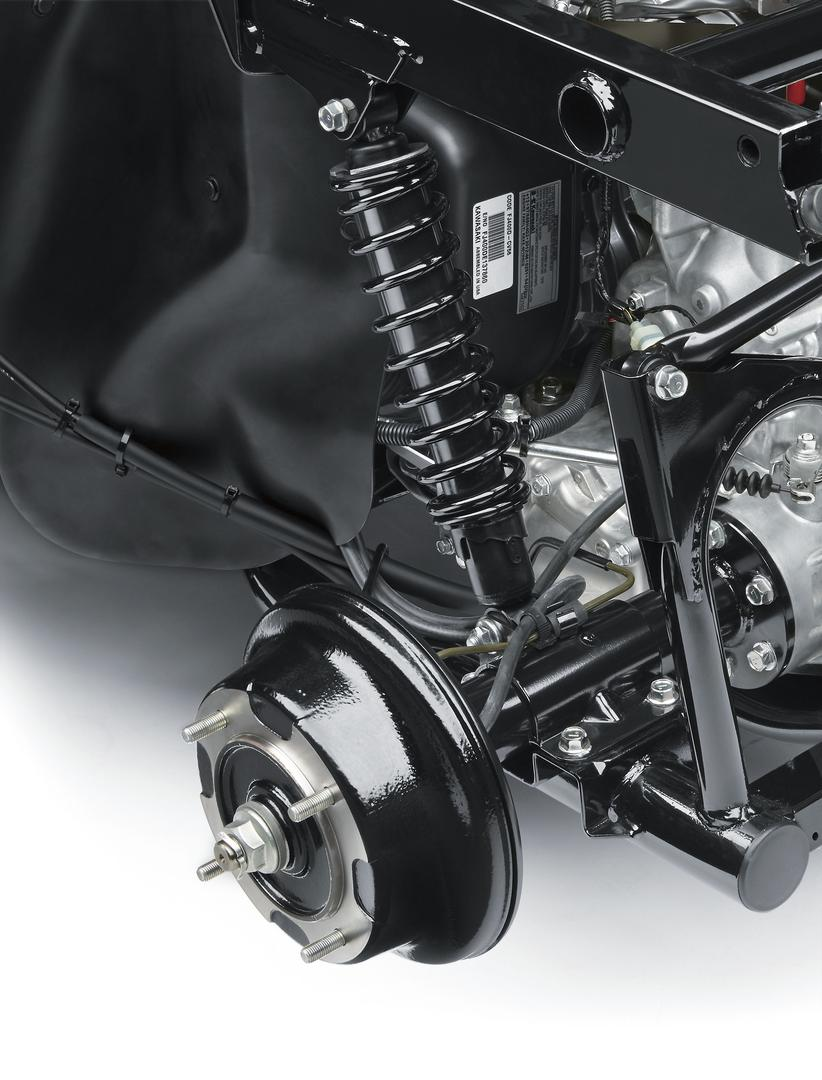

Idealised front and rear suspension settings offer the following benefits: - increased stability - improved suspension action, contributing to off-road bump absorption and ground following, as well as increased ride comfort - improved handling response, facilitating control

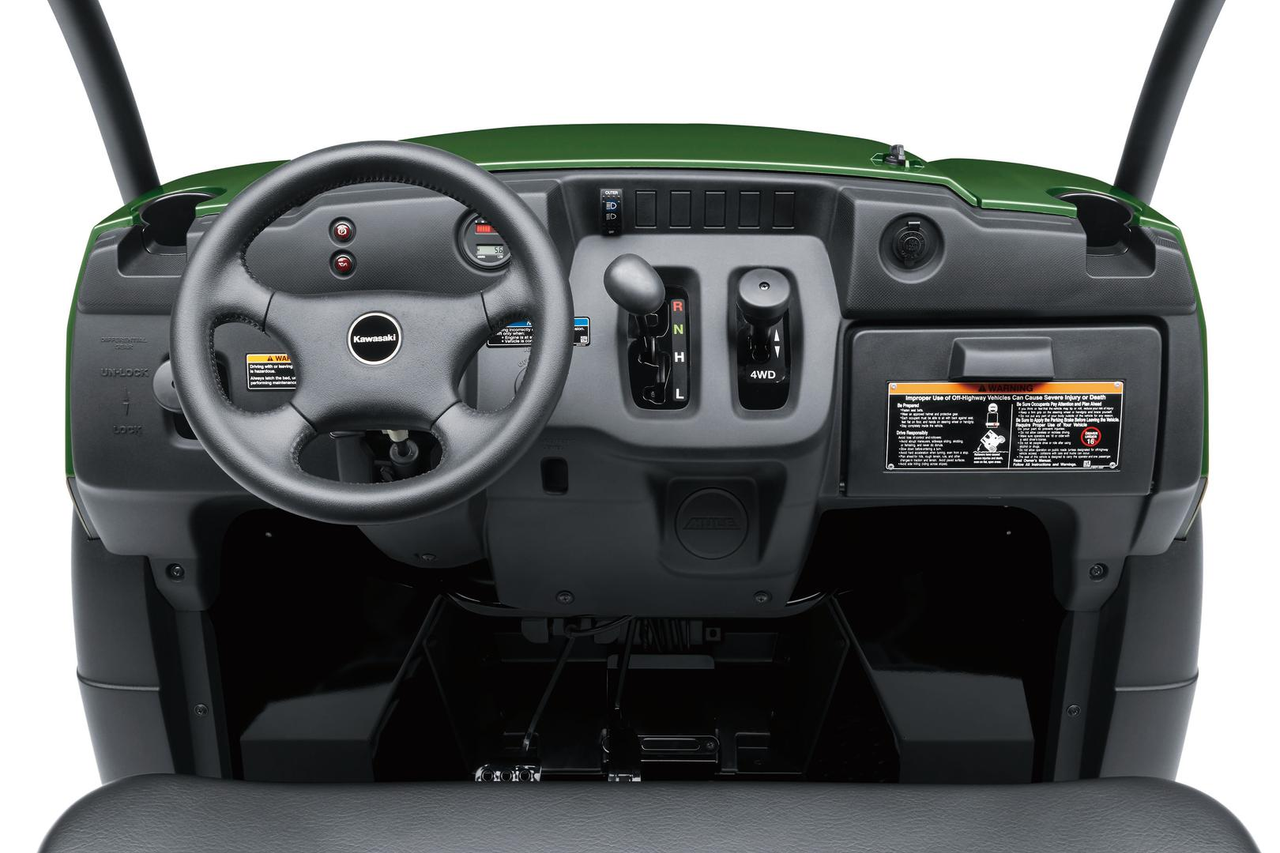

Automotive-style dashboard designed based on that of the PRO Series models puts all controls within easy reach of the driver.

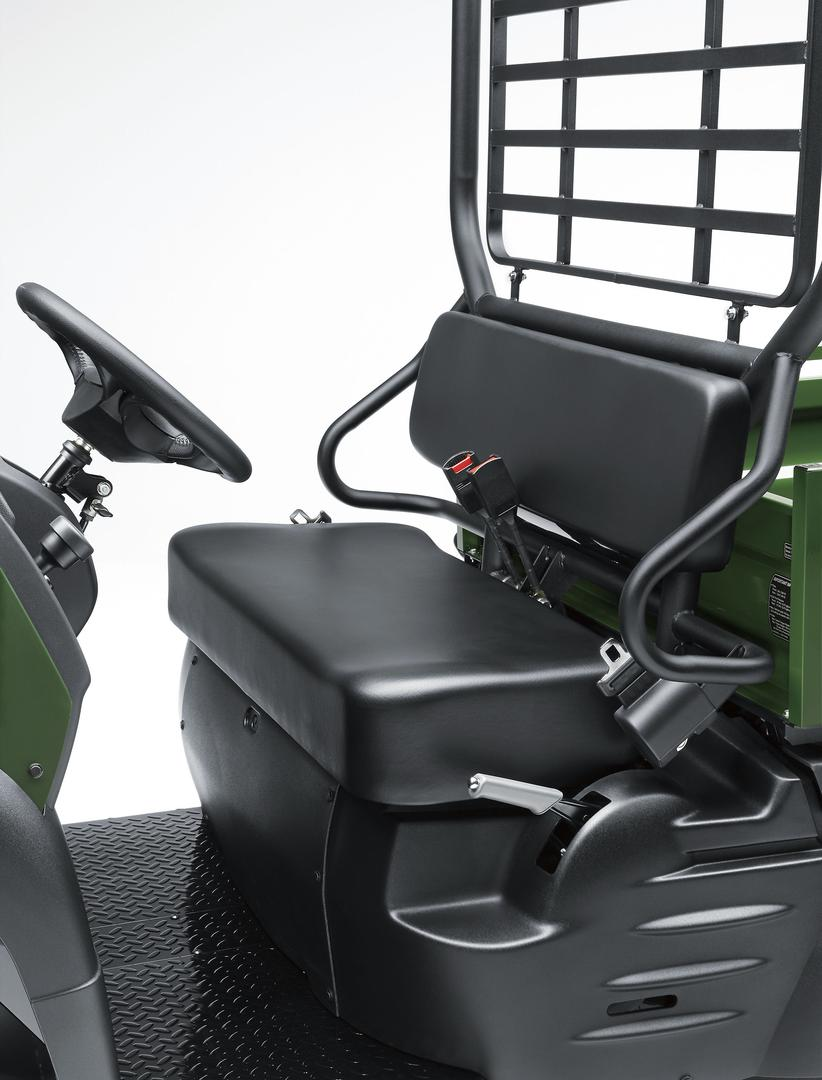

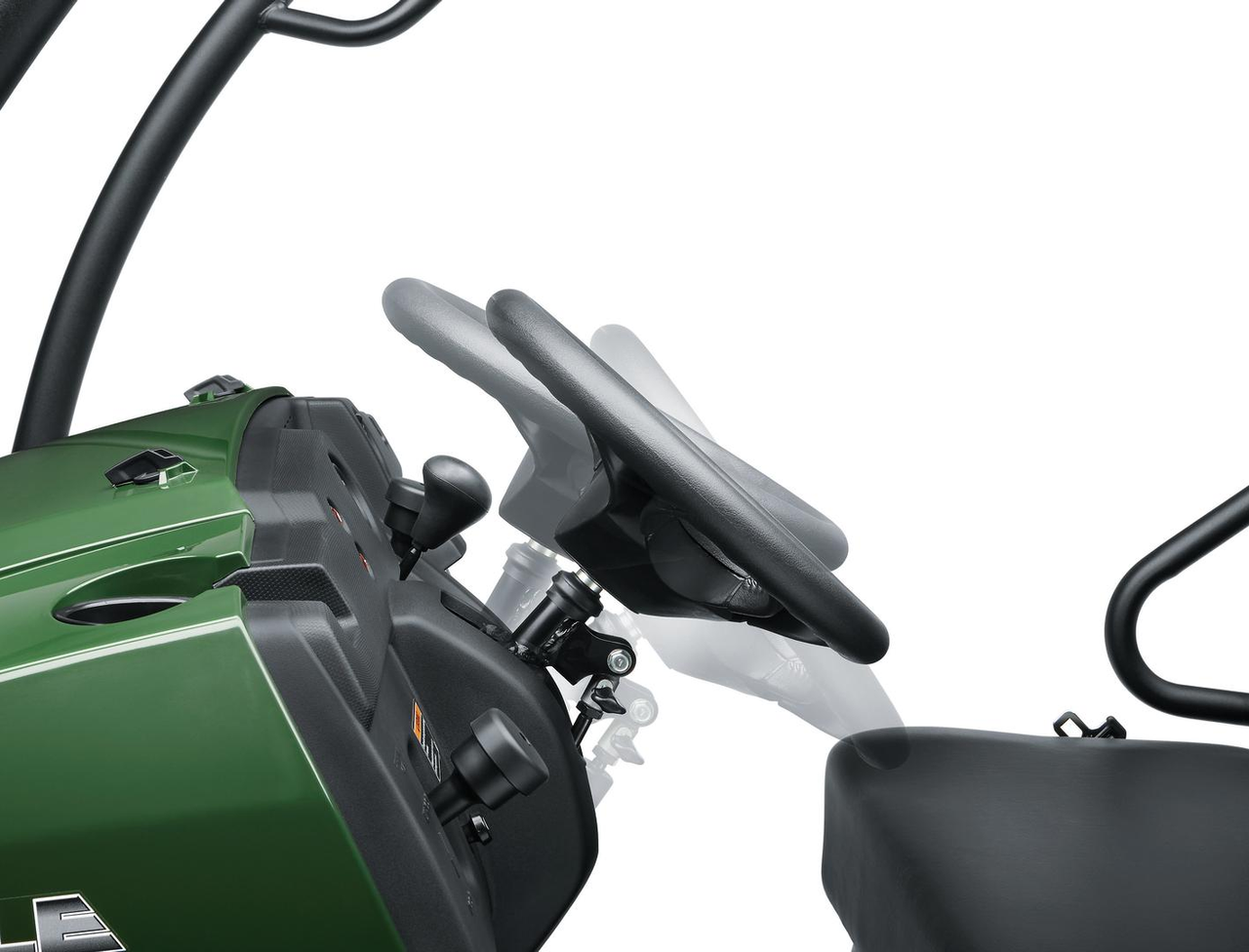

Steering wheel has a stepless adjustability range of approximately 29o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle

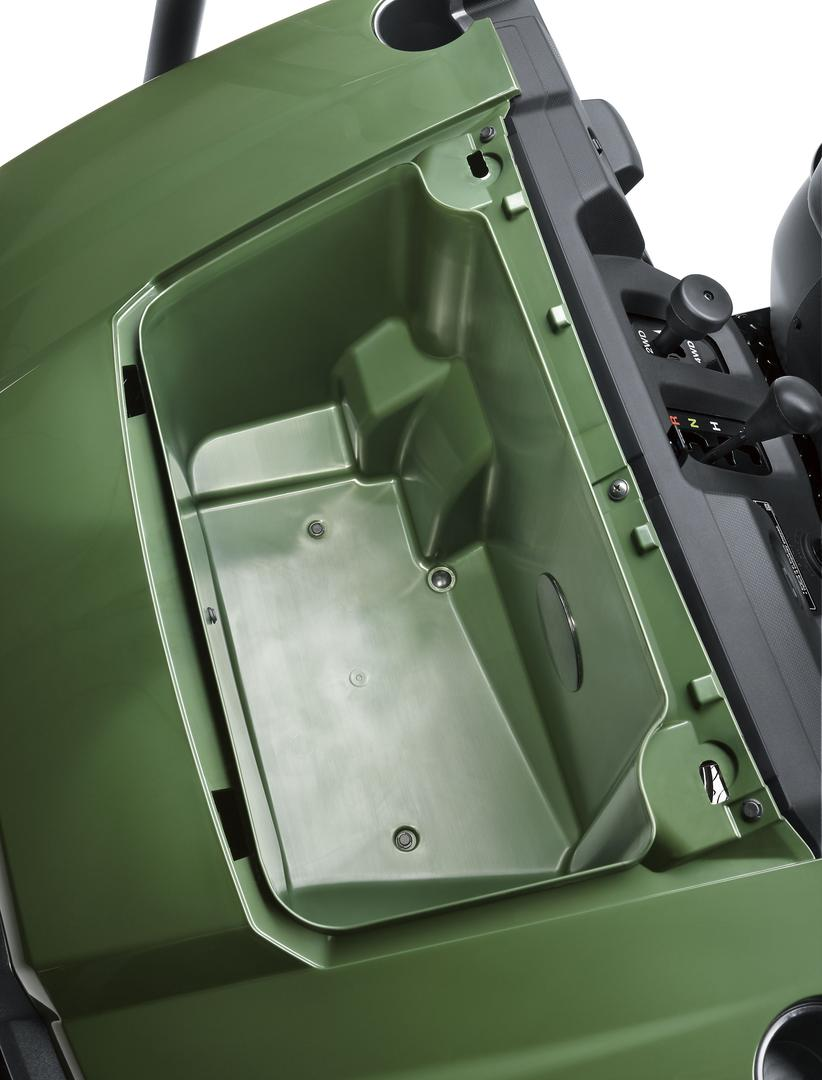

Removable front hood allows quick access to a spacious 60-litre sealed storage area. The hood releases are on the cab side, allowing access from inside the cab.
Pulling the parking brake lever (conveniently located to the left of the driver’s seat) operates a mechanical internal expansion type brakefor the rear wheels.

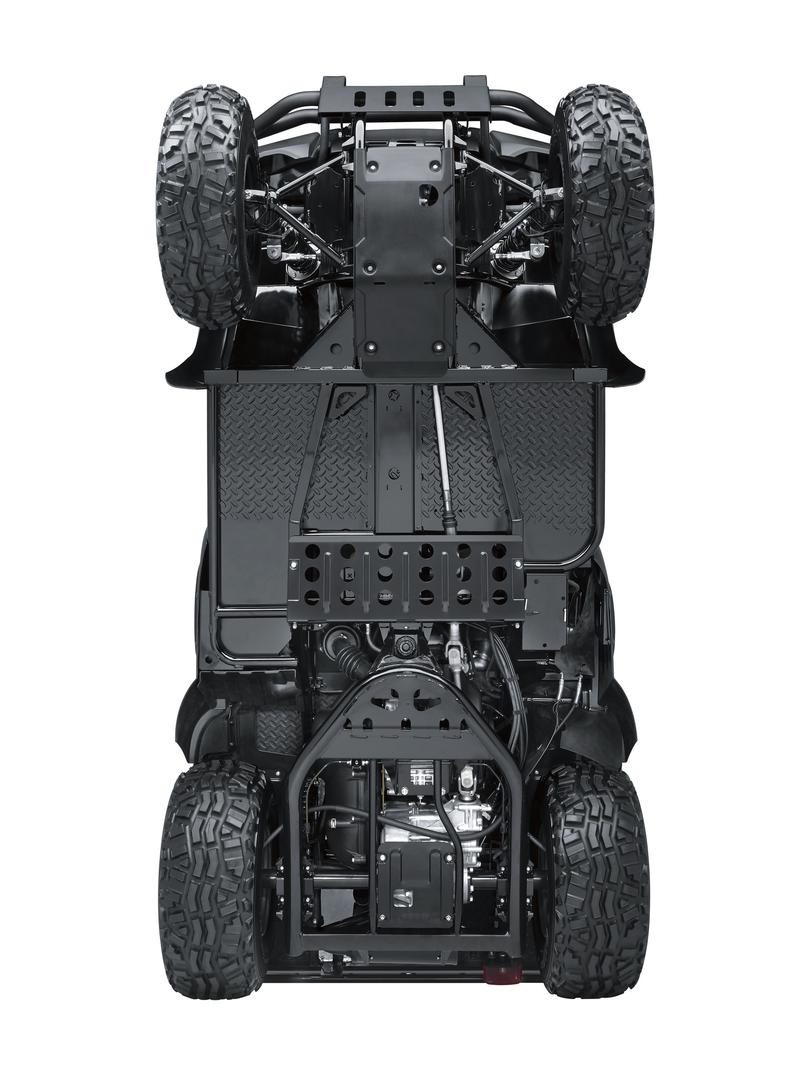

Highly durable ladder-type tubular steel frame designed for an ideal blend of rigidity and ride comfort.
Belt-driven automatic transmission with a Hi-Lo dual-range transfer case gives the 4WD models excellent off-road riding capability. Two forward speeds to choose from lend flexibility when hill-climbing with a heavy load.

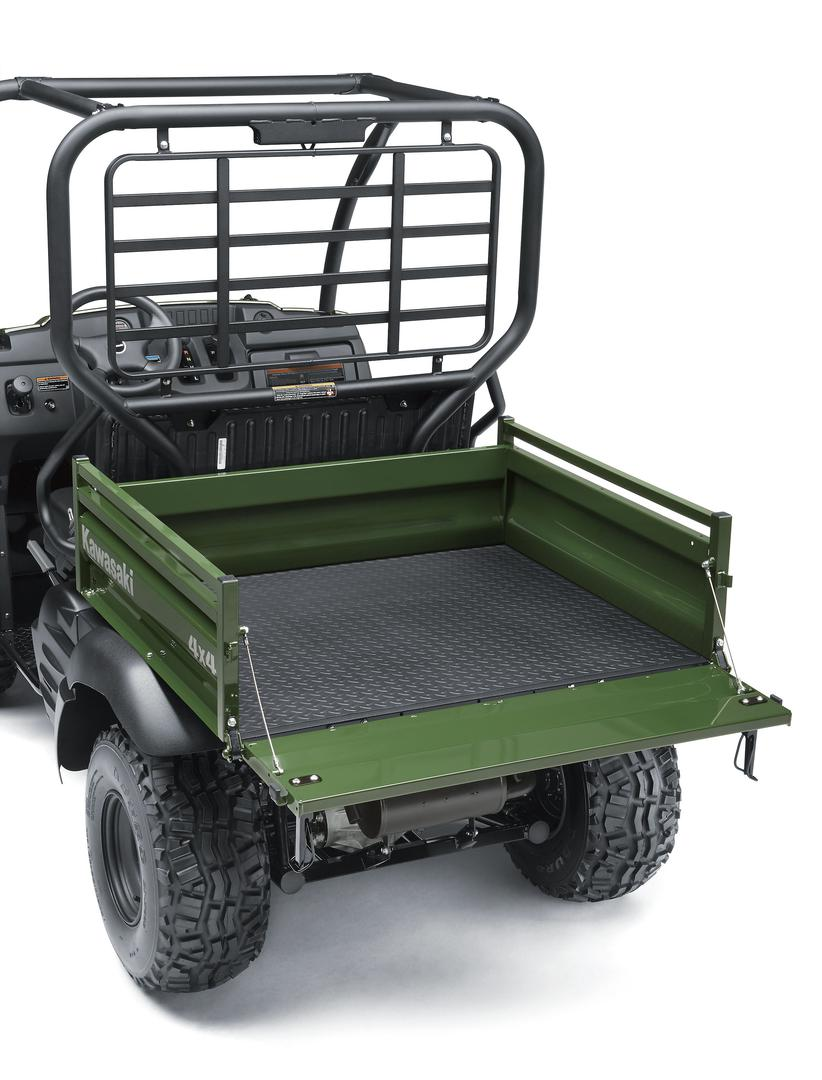

Cargo bed dimensions are 1,040 x 905 x 245 mm. Its square, flat design makes it easy to load from three sides. Cargo bed load capacity is 181 kg
| Engine type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 8.6:1 |
| Valve system | OHV, 2 valves |
| Bore x stroke | 82.0 x 76.0 mm |
| Displacement | 401 cm³ |
| Fuel system | Fuel injection |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition system | Battery & Coil (transistorised ignition) |
| Maximum power | 9.9 kW {13.5 PS} / 4,000 rpm |
|---|---|
| Maximum torque | 29.0 N•m {3.0 kgf•m} / 2,400 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Primary reduction ratio | 3.653 ~ 0.794 |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Shaft 2WD/4WD |
| Final reduction ratio | 4.000 (64/16) |
| Frame type | Ladder type, tubular steel |
|---|---|
| Trail | 45 mm |
| Wheel travel front | 78 mm |
| Wheel travel rear | 79 mm |
| Tyre, front | 24 x 9-10 |
| Tyre, rear | 24 x 11-10 |
| L x W x H | 2,710 x 1,335 x 1,800 mm |
| Steering angle L/R | 43° / 38° (43° in - 38° out) |
| Wheel base | 1,780 mm |
| Ground clearance | 170 mm |
| Fuel capacity | 16.0 litres |
| Seat height | 780 mm |
| Curb mass* | 468 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 450 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Parking brake | Mechanical internal expansion type on rear wheels |
|---|---|
| Front brake type | Dual hydraulic drums |
| Rear brake type | Dual hydraulic drums |
| Front suspension type | MacPherson struts |
| Rear suspension type | Unit swingarm |
Large storage bin fits under passenger side of seat. Lift seat bottom for access. Approximately 13,5 L (3.6 gallon) volume.
•Not compatible with hard cabin
Part Number: 022CAT0088 – Half Cabin Kit for MULE SX.
Includes: Glass windscreen, Wiper and washer kit, Steel Roof Panel, Steel with Polycarbonate (PC) Rear Panel.
Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
Part Number: 022CAT0087B – Hard Cabin Kit for MULE SX.
Includes: Glass Windscreen, Steel Roof, Steel with Polycarbonate (PC) Rear Panel, PC Doors with Fixed Glass Windows, and Wiper and Washer Kit.
Structure made of high-grade steel with quality black finish. The flip-up tinted single-layer safety glass windscreen features rubber seals and locks. Doors are equipped with hydraulic stoppers and automotive-style locks.
Modular Parts:
Image shown is 022CAT0087A – MULE SX Hard Cabin with Sliding Windows. 022CAT0087B has Fixed Windows.
Read More
The perfect start to a protective cab system.
Part Number: 022CAT0106 – Roof & Windscreen Kit for MULE SX.
Includes: Steel Roof Panel, Windscreen, and Wiper + Washer Kit.
Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
Vertical shatter-resistant safety glass mirror sits in high-impact plastic housing.
Convex mirror surface increases the driver’s field of rear view. Adaptive 360° bracket rotation provides optimal viewing position.
Mirrors attach directly to vehicle ROPS.
Steel with Polycarbonate Rear Panel that protects against dust, dirt, and weather. An important part of a complete cab system.
Part Number: 022CAT0092 – Rear Panel for MULE SX.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
Made from tough 7.9,mm (5/16”) extra thick rubber, the Cargo Bed Mat protects cargo and bed surface
Read More
Slip-resistant Cargo Bed Liner for MULE SX/600/610.
Cargo Bed Liner includes divider notches to use 152mm (6") L x 51mm (2") W pieces to compartmentalize the bed.
Durable and clear windscreen made of high-quality plastic.
Part Number: 022CAT0090 – Windscreen for MULE SX.
*Does not include Wiper and Washer.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
Heavy-Duty Reinforced Rear Coil Spring.
Read More
High-performance LED headlights for improved illumination and better visibility.
Washer System that works with the MULE SX Windscreen. Includes pump, hose, and nozzle.
Part Number: 022CAT0095 – Washer System for MULE SX.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
Robust Steel Roof Panel that protects against rain, sun, and snow. Easy to install and adapted for the MULE SX series.
Part Number: 022CAT0091 – Steel Roof Panel for MULE SX.
Available Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
The perfect start to a protective cab system.
Part Number: 022CAT0089 – Windscreen Kit for MULE SX.
Includes: Windscreen, Wiper, and Washer Kit.
Modular Parts:
Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
Provides better visibility in rainy and dirty conditions. Designed specifically for use with the MULE SX Windscreen.
Available Modular Parts:
**Image shown is 022CAT0087A, MULE SX Hard Cabin with Sliding Windows.
Read More
Durable, weatherproof 510g (18 oz) fiber-reinforced PVC laminate material. Installs easily with durable straps. Includes fiberglass support rod to shape the peak.
3D curved safety glass provides increased field of view.
Can also be used in combination with the Hard Cabin for MULE PRO-MX and MULE SX.
Not compatible with the MULE PRO-DX & DXT Hard Cabin with Roof.
The Headrest offers additional occupant comfort
