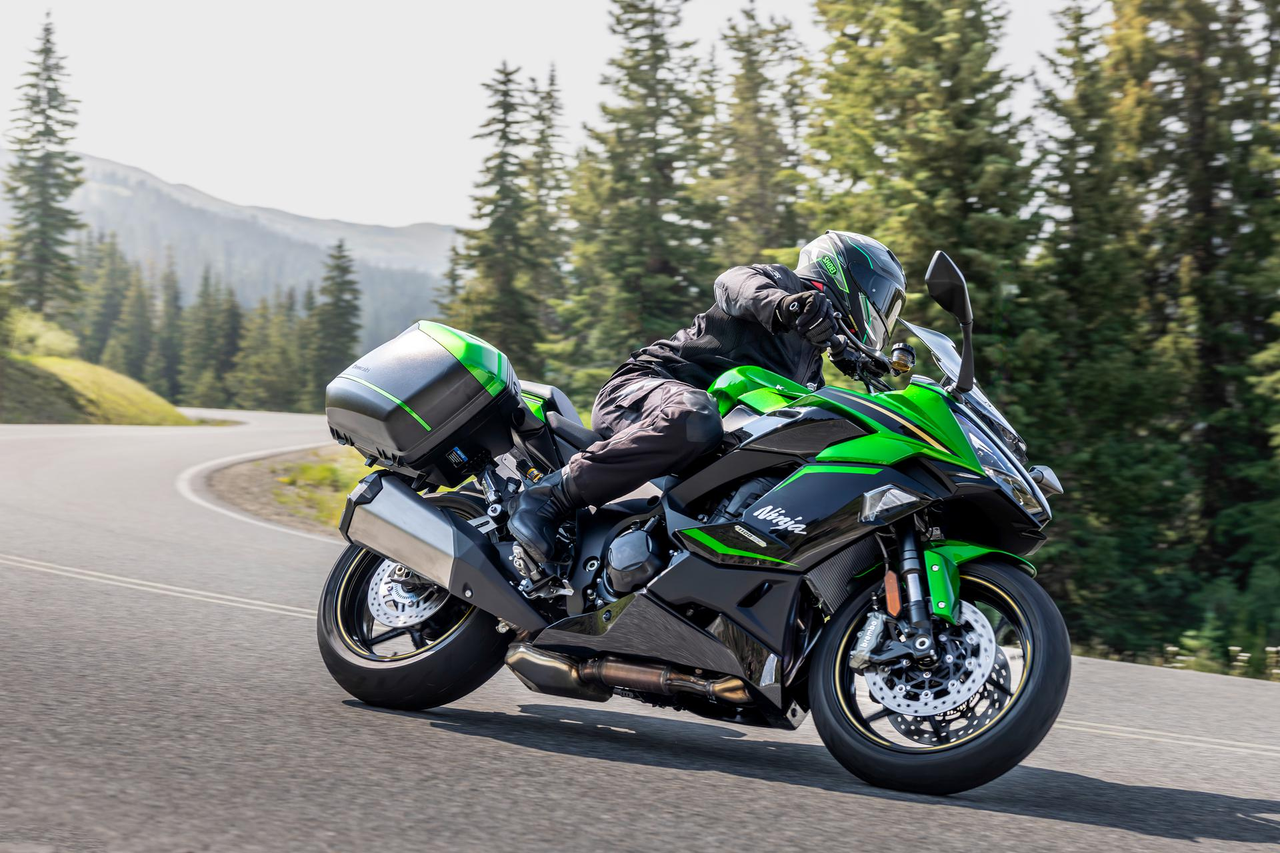

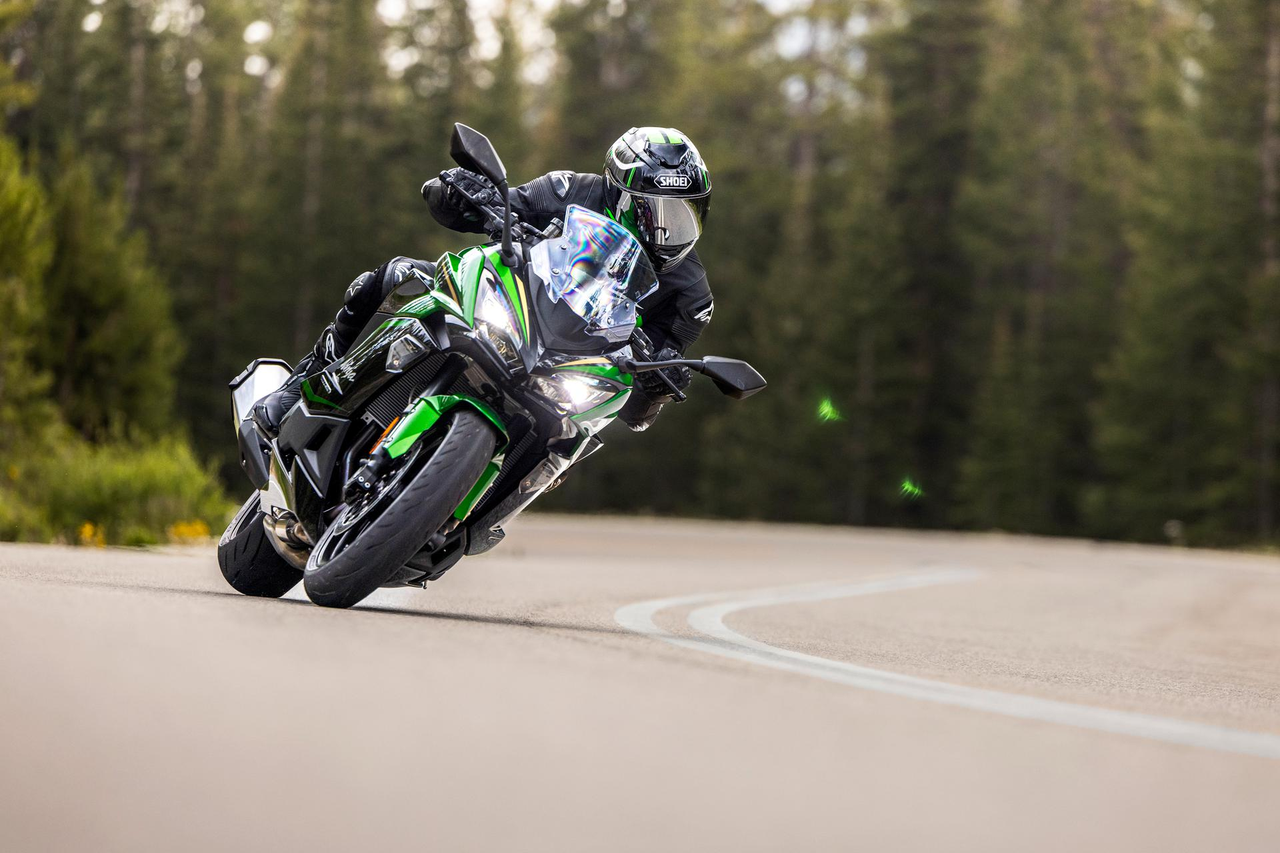

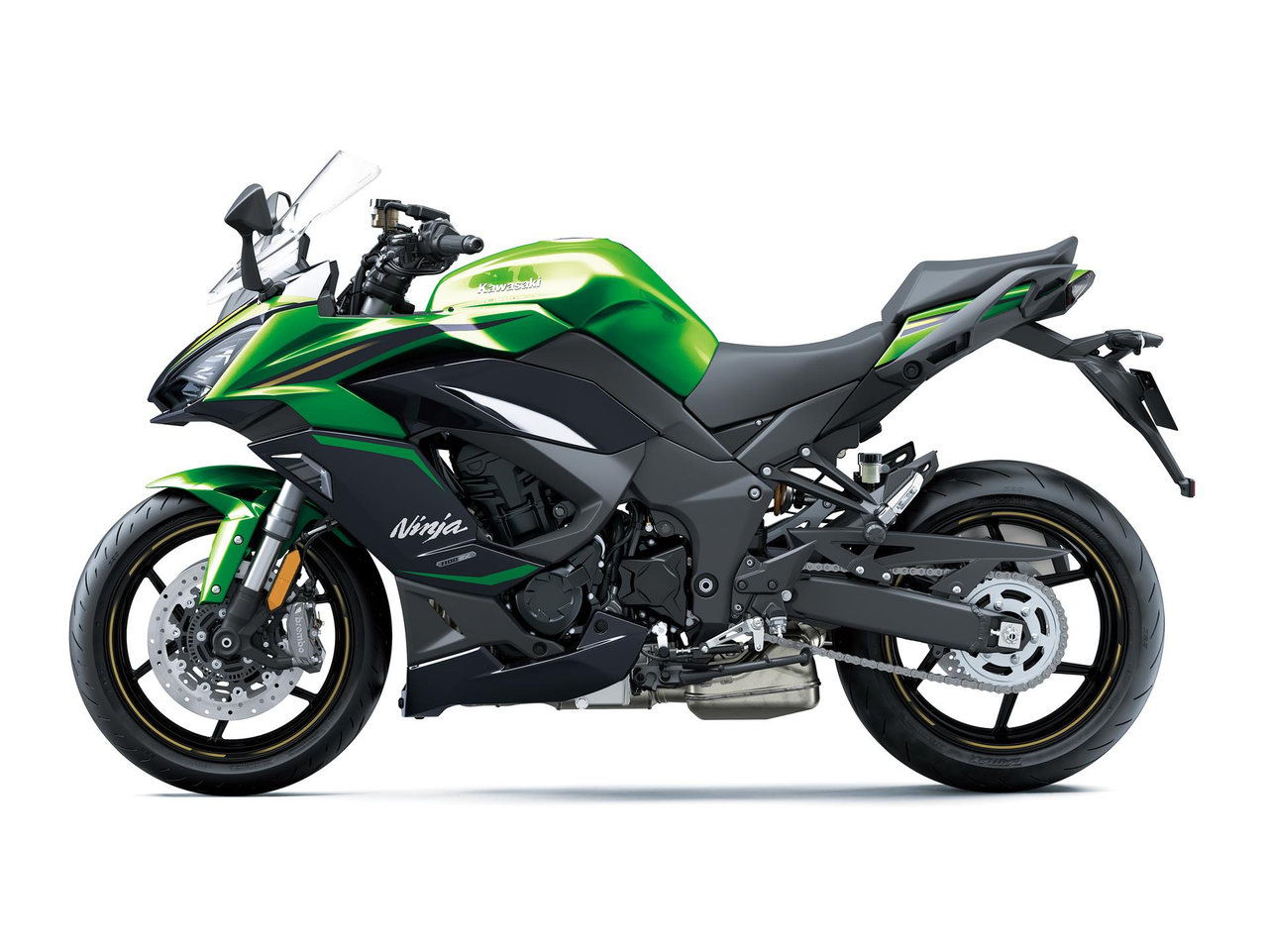

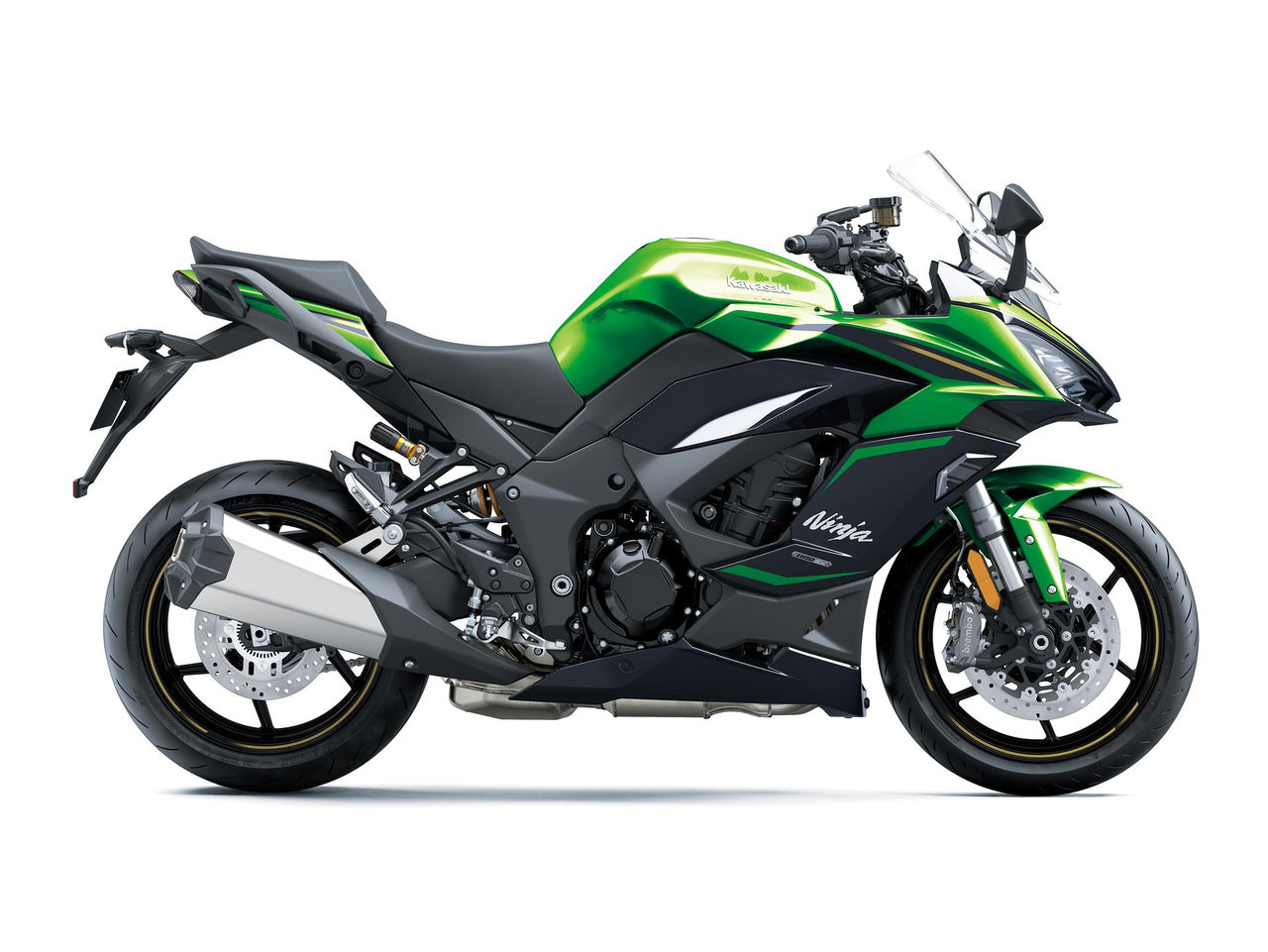

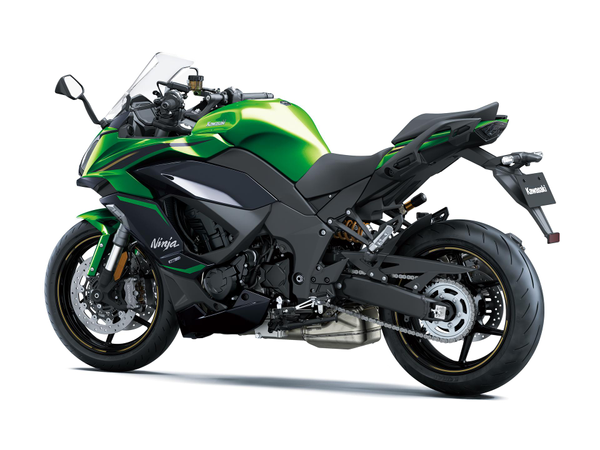

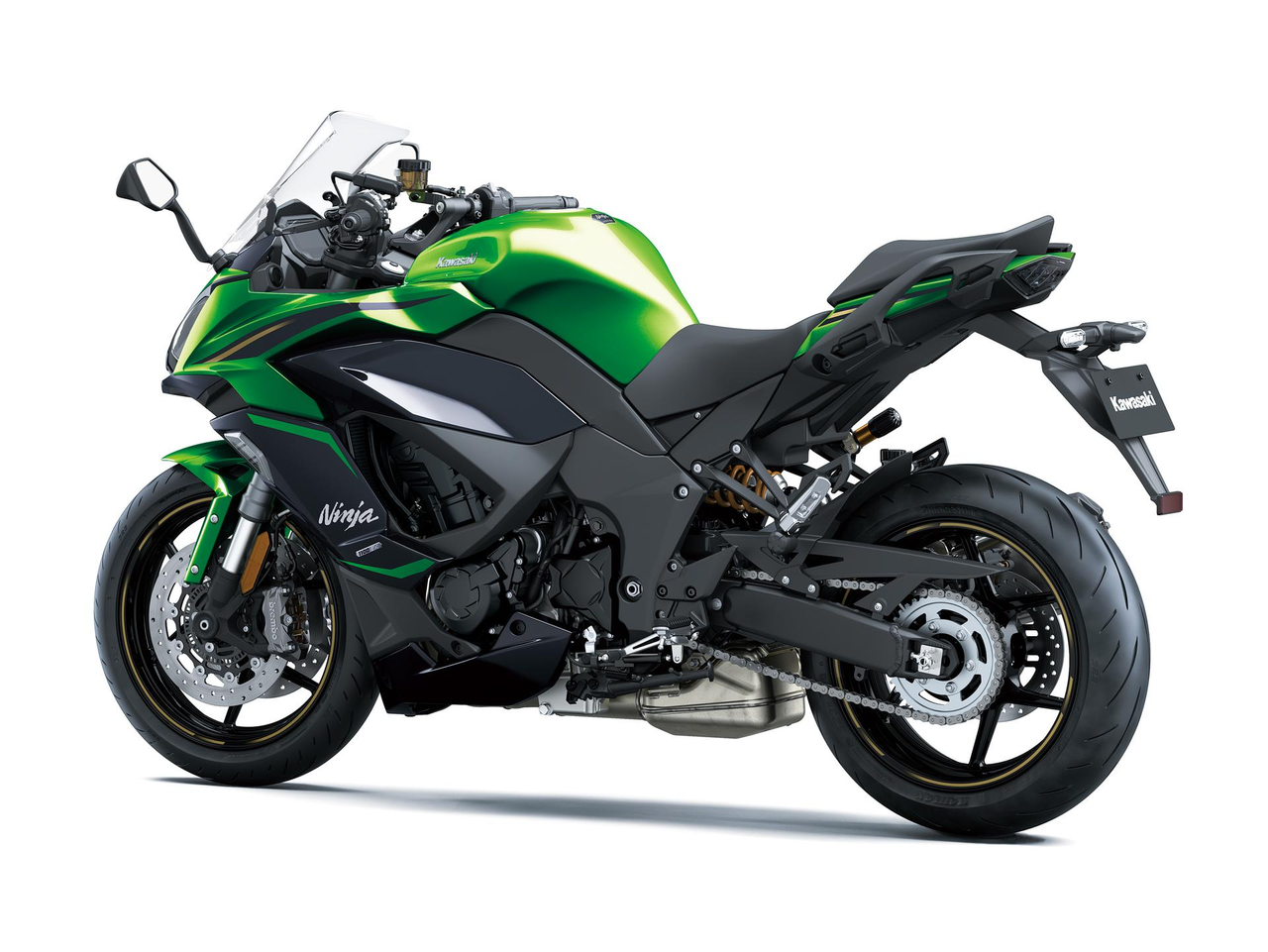

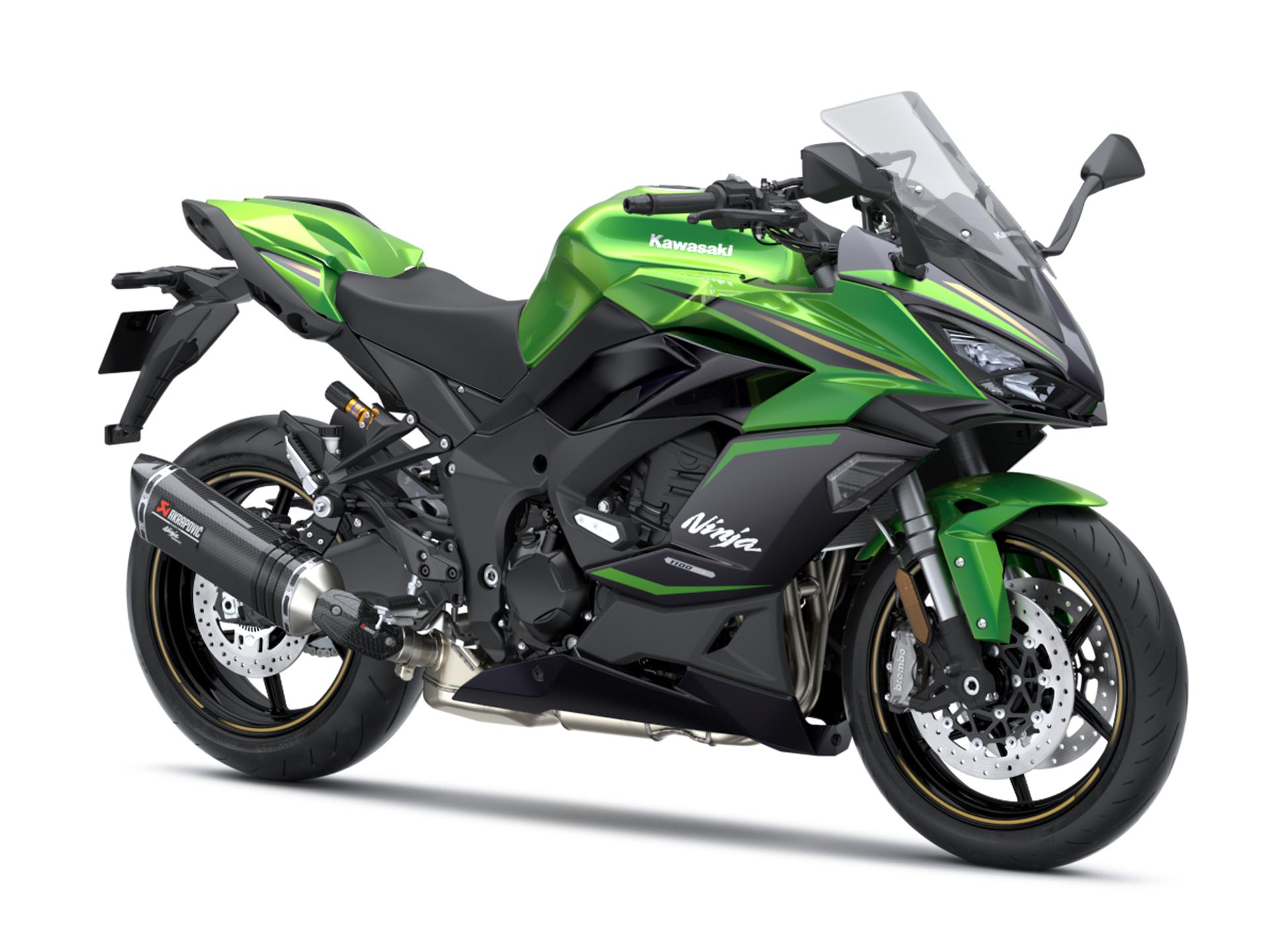

The new Ninja 1100SX offers the ultimate in sport touring ability. Created to deliver high performance, advanced technology, and superb comfort for sports riding and all-day touring, the Ninja 1100SX sets a new standard for sport touring performance.
Colours
Show all
Show less
Edition Accessories
Show all
Show less
Edition Accessories
Show all
Show less
Edition Accessories
Show all
Show less
Inpage Navigation Section: Gallery
Inpage Navigation Section: Features & Specs
The Ninja 1100SX takes sport riding enjoyment to the next level, with a larger-displacement engine and improved KQS. Sporty handling, supersport-style chassis components and dynamic Ninja styling from its predecessor are maintained, with the superbly balanced engine-chassis package contributing to street-riding excitement in a wide range of situations.
The Ninja 1100SX takes sport riding enjoyment to the next level, with a larger-displacement engine and improved KQS. Sporty handling, supersport-style chassis components and dynamic Ninja styling from its predecessor are maintained, with the superbly balanced engine-chassis package contributing to street-riding excitement in a wide range of situations.

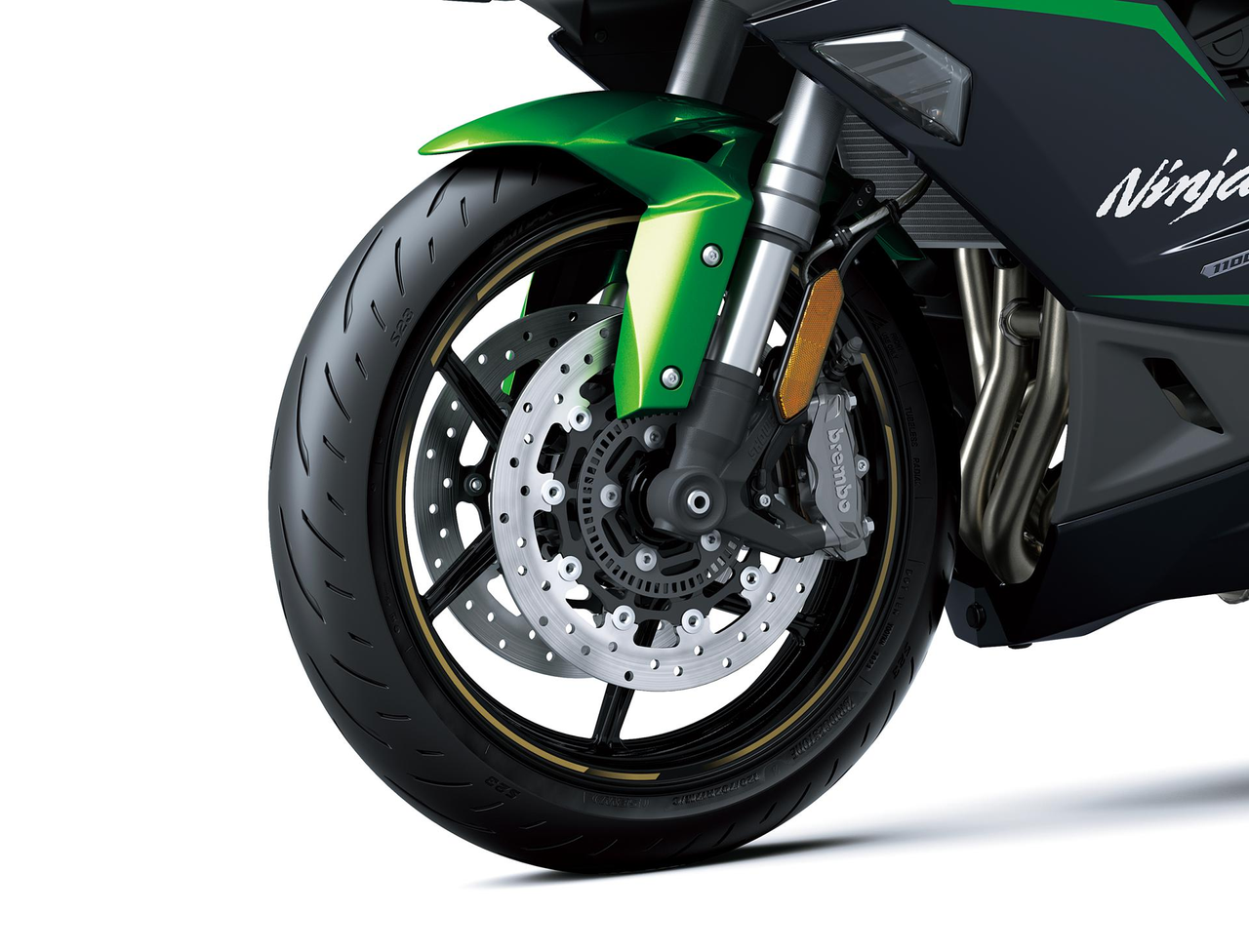

Dual Brembo front brake discs stopped by Brembo M4.32 calipers are complemented by a Brembo master cylinder and steel-braided brake lines to deliver excellent stopping power and precise braking performance.
Dual Brembo front brake discs stopped by Brembo M4.32 calipers are complemented by a Brembo master cylinder and steel-braided brake lines to deliver excellent stopping power and precise braking performance.

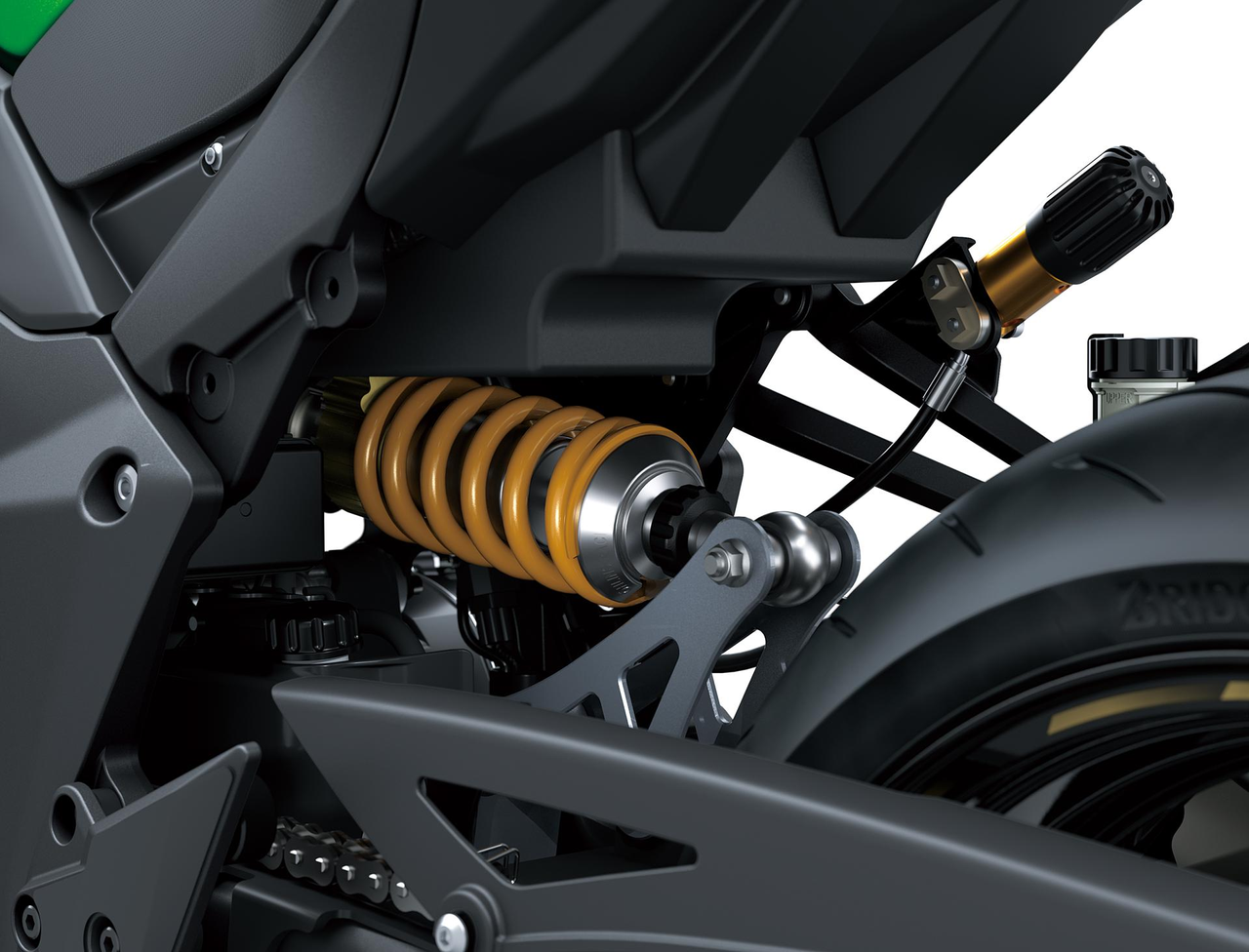

An Öhlins S46 shock absorber at the rear provides a plush feel and ample adjustability to tailor the setup to the rider’s preferences.
An Öhlins S46 shock absorber at the rear provides a plush feel and ample adjustability to tailor the setup to the rider’s preferences.

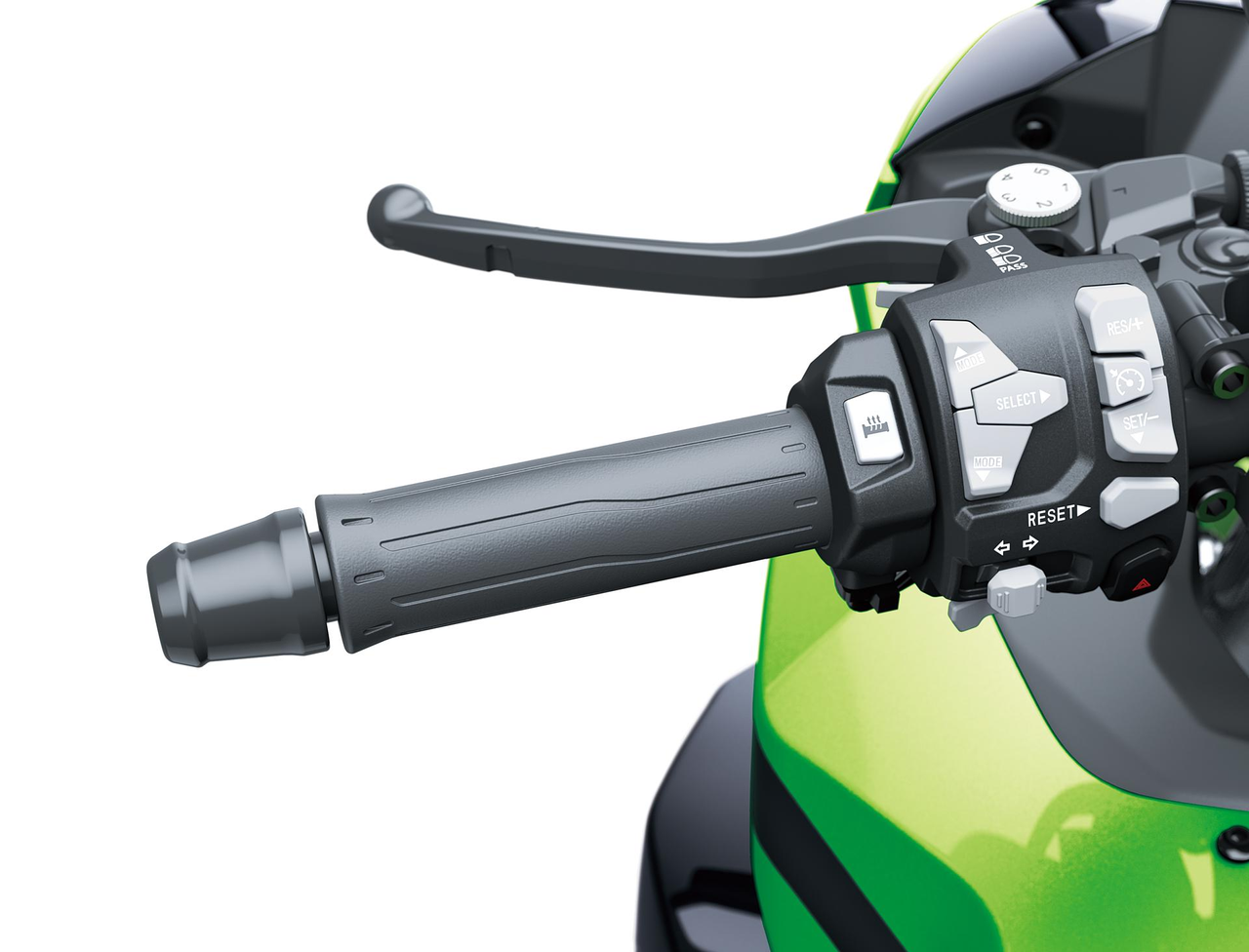

Grip heaters (available as an accessory on the standard model) keep riders’ hands warm when the weather gets cool, adding comfort on rides both in town and on longdistance tours. They fully enclose the grips, ensuring excellent warmth.
Grip heaters (available as an accessory on the standard model) keep riders’ hands warm when the weather gets cool, adding comfort on rides both in town and on longdistance tours. They fully enclose the grips, ensuring excellent warmth.

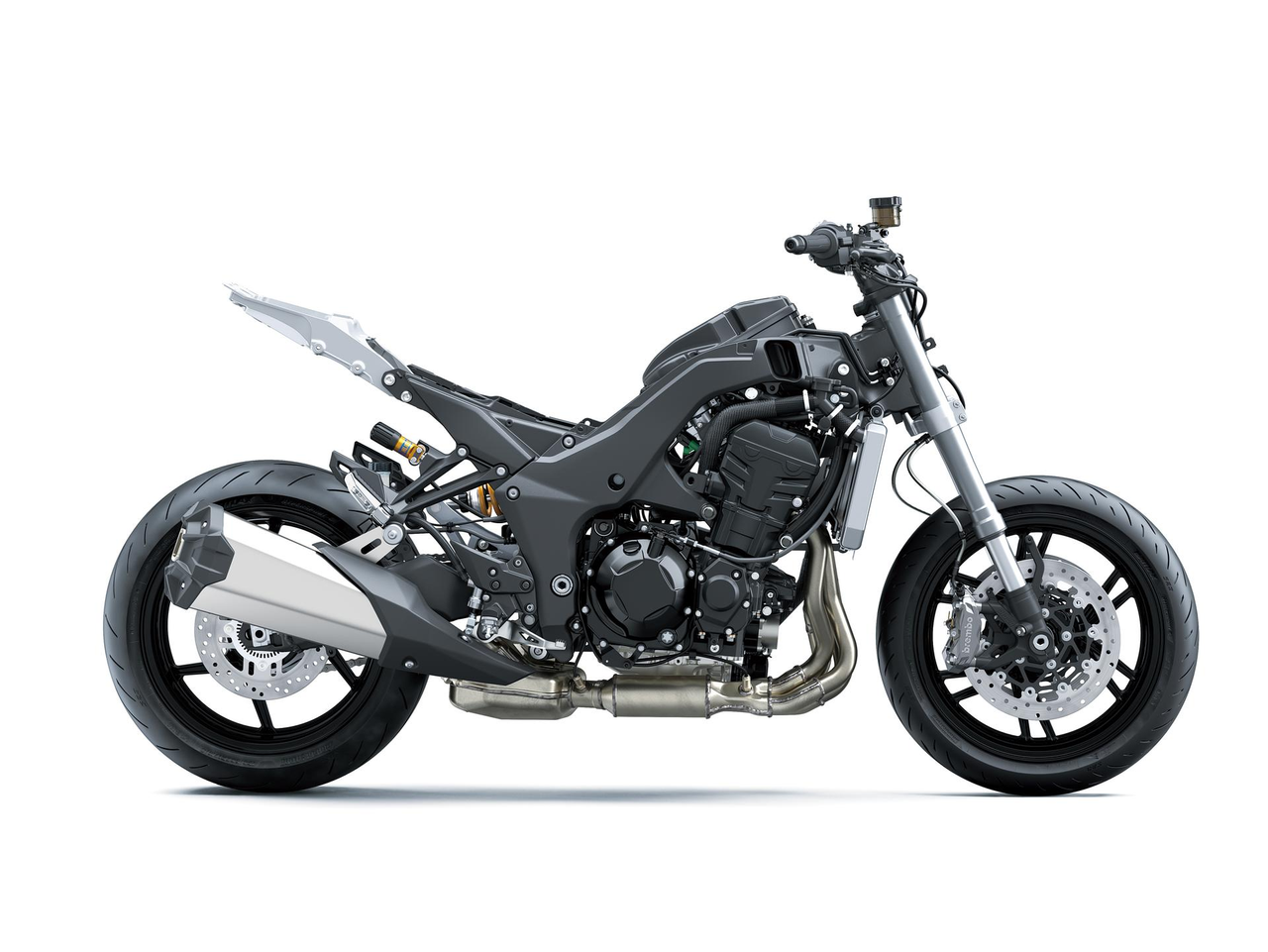

The Ninja 1100SX’s highly rigid aluminium frame offers a high degree of mass centralization, offering a balance of agility and firm handling. The bike responds quickly to rider input, while offering an excellent ability to soak up bumps and ruts. Highly composed, the Ninja 1100SX’s superb straight-line stability and its planted feeling in corners make it easy to spend long hours in the saddle.
The Ninja 1100SX’s highly rigid aluminium frame offers a high degree of mass centralization, offering a balance of agility and firm handling. The bike responds quickly to rider input, while offering an excellent ability to soak up bumps and ruts. Highly composed, the Ninja 1100SX’s superb straight-line stability and its planted feeling in corners make it easy to spend long hours in the saddle.
Weights added in the handlebars themselves are complemented by heavier bar ends to keep vibration while riding to a minimum.
Weights added in the handlebars themselves are complemented by heavier bar ends to keep vibration while riding to a minimum.
The dual-direction Kawasaki Quick Shifter (KQS) is now even easier and more fun to use, offering smoother shifting when accelerating and decelerating. It now functions from a lower minimum rpm, facilitating slower-speed gear shifts, and improving ride feel when riding at a more relaxed pace.
The dual-direction Kawasaki Quick Shifter (KQS) is now even easier and more fun to use, offering smoother shifting when accelerating and decelerating. It now functions from a lower minimum rpm, facilitating slower-speed gear shifts, and improving ride feel when riding at a more relaxed pace.
A USB Type-C socket is now mounted on the left handlebar, offering riders a convenient power source.
A USB Type-C socket is now mounted on the left handlebar, offering riders a convenient power source.

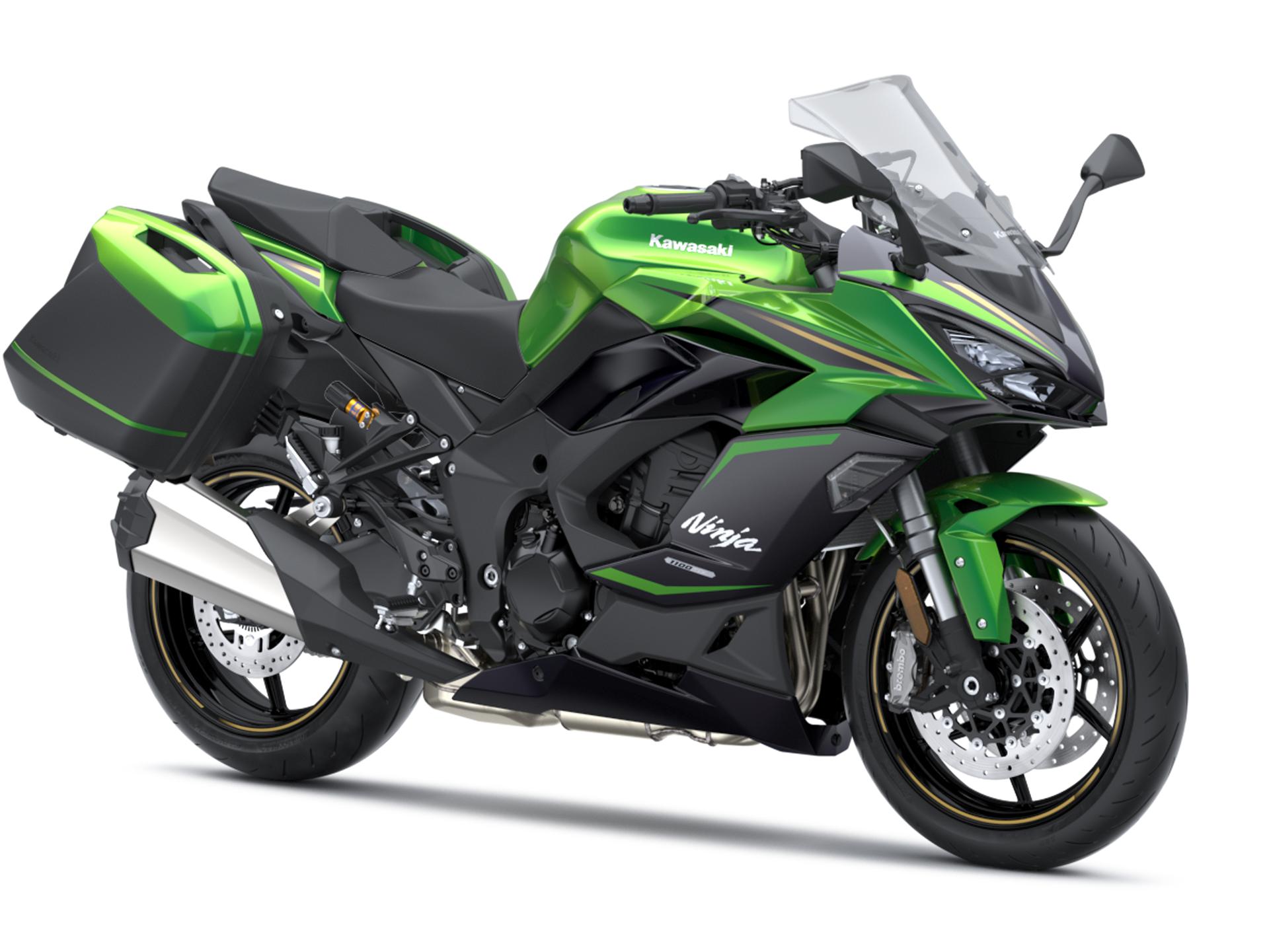

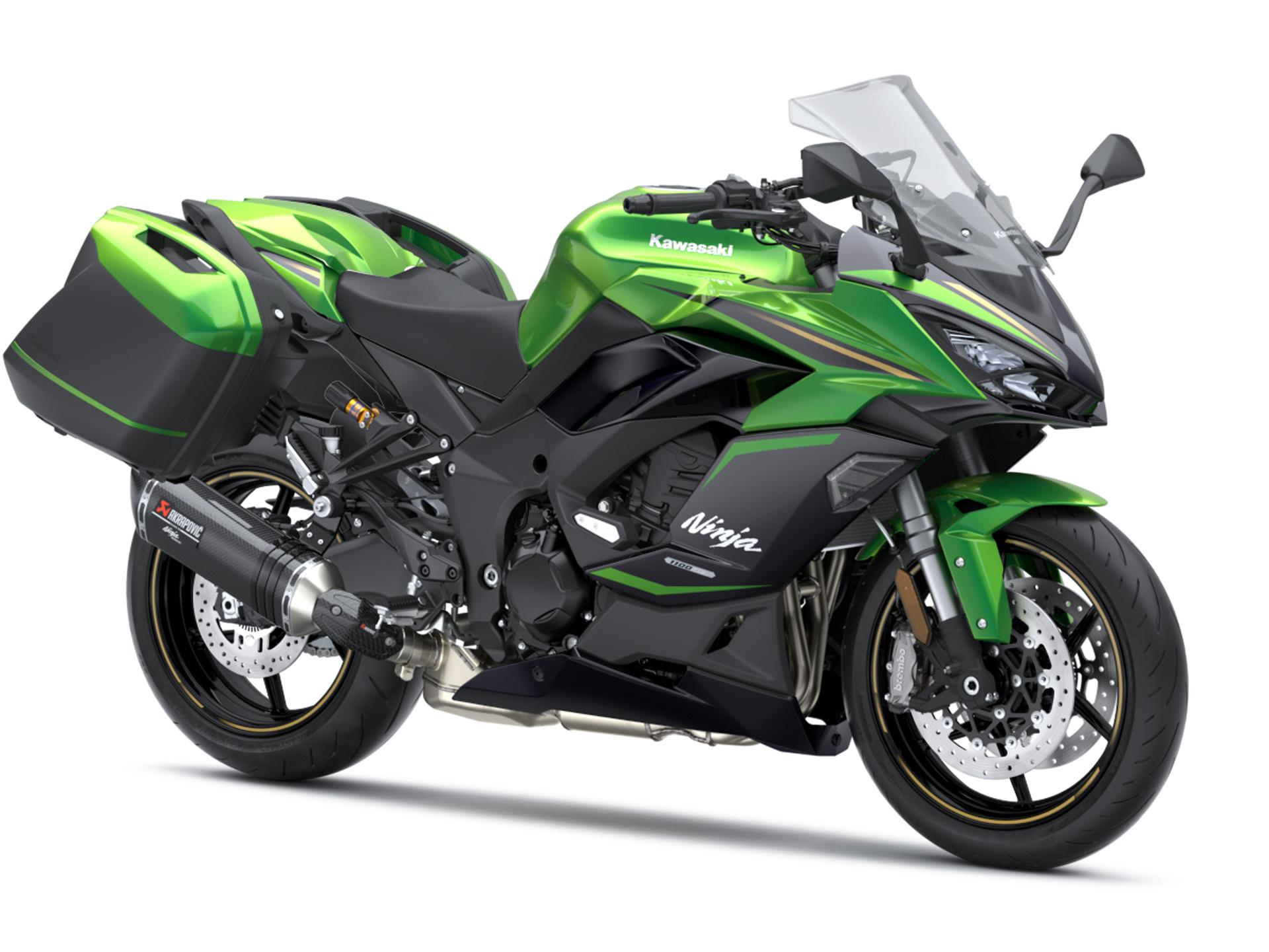

The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centerline, its clean clutter-free design ensuring the rear of the bike still looks good with the panniers removed.
The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centerline, its clean clutter-free design ensuring the rear of the bike still looks good with the panniers removed.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
The Ninja 1100SX features a host of rider support technology dedicated to helping riders enjoy their machine’s sport riding performance to the fullest.
The Ninja 1100SX features a host of rider support technology dedicated to helping riders enjoy their machine’s sport riding performance to the fullest.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
With longer 5th and 6th gears, riders can cruise at a lower rpm on the expressway, which adds to touring comfort and improves fuel economy.
With longer 5th and 6th gears, riders can cruise at a lower rpm on the expressway, which adds to touring comfort and improves fuel economy.
Improved fuel economy, longer 5th and 6th gears, and the addition of a handlebar-mounted USB Type-C outlet make longer journeys even more enjoyable. As before, an upright riding position, manageable power delivery, and surefooted handling offer the versatility for daily riding, while superb wind protection, Electronic Cruise Control and a seamlessly integrated accessory pannier system add to comfortable weekend escapes.
Improved fuel economy, longer 5th and 6th gears, and the addition of a handlebar-mounted USB Type-C outlet make longer journeys even more enjoyable. As before, an upright riding position, manageable power delivery, and surefooted handling offer the versatility for daily riding, while superb wind protection, Electronic Cruise Control and a seamlessly integrated accessory pannier system add to comfortable weekend escapes.
Based on the Ninja 1000SX’s proven and well-liked engine, the Ninja 1100SX’s engine displaces 1,099 cm3 and delivers 11.5 kgƒ·m of torque. The liquid-cooled, 4-stroke In-Line Four engine now pulls even more strongly in the low-to-mid rpm range— which riders will notice immediately and use often— while the high rpm performance remains robust to deliver all-around improved engine power feel and response.
Based on the Ninja 1000SX’s proven and well-liked engine, the Ninja 1100SX’s engine displaces 1,099 cm3 and delivers 11.5 kgƒ·m of torque. The liquid-cooled, 4-stroke In-Line Four engine now pulls even more strongly in the low-to-mid rpm range— which riders will notice immediately and use often— while the high rpm performance remains robust to deliver all-around improved engine power feel and response.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Styling that highlights the Ninja 1100SX’s Ninja family image and sport riding potential features streamlined looking fairings and a single-sided muffler.
Styling that highlights the Ninja 1100SX’s Ninja family image and sport riding potential features streamlined looking fairings and a single-sided muffler.
The Ninja 1100SX achieves both an increase in engine power and improved fuel economy at the same time thanks to revised engine components, longer 5th and 6th gears, and a lower rev limit.
The Ninja 1100SX achieves both an increase in engine power and improved fuel economy at the same time thanks to revised engine components, longer 5th and 6th gears, and a lower rev limit.
Wind protection afforded by the full-fairing bodywork is complemented by a windshield with four available positions. The windshield is adjustable by hand (without tools).
Wind protection afforded by the full-fairing bodywork is complemented by a windshield with four available positions. The windshield is adjustable by hand (without tools).
The Ninja 1100SX takes sport riding enjoyment to the next level, with a larger-displacement engine and improved KQS. Sporty handling, supersport-style chassis components and dynamic Ninja styling from its predecessor are maintained, with the superbly balanced engine-chassis package contributing to street-riding excitement in a wide range of situations.
The Ninja 1100SX takes sport riding enjoyment to the next level, with a larger-displacement engine and improved KQS. Sporty handling, supersport-style chassis components and dynamic Ninja styling from its predecessor are maintained, with the superbly balanced engine-chassis package contributing to street-riding excitement in a wide range of situations.
Dual Brembo front brake discs stopped by Brembo M4.32 calipers are complemented by a Brembo master cylinder and steel-braided brake lines to deliver excellent stopping power and precise braking performance.
Dual Brembo front brake discs stopped by Brembo M4.32 calipers are complemented by a Brembo master cylinder and steel-braided brake lines to deliver excellent stopping power and precise braking performance.
An Öhlins S46 shock absorber at the rear provides a plush feel and ample adjustability to tailor the setup to the rider’s preferences.
An Öhlins S46 shock absorber at the rear provides a plush feel and ample adjustability to tailor the setup to the rider’s preferences.
Grip heaters (available as an accessory on the standard model) keep riders’ hands warm when the weather gets cool, adding comfort on rides both in town and on longdistance tours. They fully enclose the grips, ensuring excellent warmth.
Grip heaters (available as an accessory on the standard model) keep riders’ hands warm when the weather gets cool, adding comfort on rides both in town and on longdistance tours. They fully enclose the grips, ensuring excellent warmth.
The Ninja 1100SX’s highly rigid aluminium frame offers a high degree of mass centralization, offering a balance of agility and firm handling. The bike responds quickly to rider input, while offering an excellent ability to soak up bumps and ruts. Highly composed, the Ninja 1100SX’s superb straight-line stability and its planted feeling in corners make it easy to spend long hours in the saddle.
The Ninja 1100SX’s highly rigid aluminium frame offers a high degree of mass centralization, offering a balance of agility and firm handling. The bike responds quickly to rider input, while offering an excellent ability to soak up bumps and ruts. Highly composed, the Ninja 1100SX’s superb straight-line stability and its planted feeling in corners make it easy to spend long hours in the saddle.
Weights added in the handlebars themselves are complemented by heavier bar ends to keep vibration while riding to a minimum.
Weights added in the handlebars themselves are complemented by heavier bar ends to keep vibration while riding to a minimum.
The dual-direction Kawasaki Quick Shifter (KQS) is now even easier and more fun to use, offering smoother shifting when accelerating and decelerating. It now functions from a lower minimum rpm, facilitating slower-speed gear shifts, and improving ride feel when riding at a more relaxed pace.
The dual-direction Kawasaki Quick Shifter (KQS) is now even easier and more fun to use, offering smoother shifting when accelerating and decelerating. It now functions from a lower minimum rpm, facilitating slower-speed gear shifts, and improving ride feel when riding at a more relaxed pace.
A USB Type-C socket is now mounted on the left handlebar, offering riders a convenient power source.
A USB Type-C socket is now mounted on the left handlebar, offering riders a convenient power source.
The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centerline, its clean clutter-free design ensuring the rear of the bike still looks good with the panniers removed.
The mounting system for the accessory panniers allows the panniers to be attached and removed very simply, contributing to increased convenience. Seamlessly integrating the panniers with the rear of the bike, the clean-mount system positions the panniers close to the bike centerline, its clean clutter-free design ensuring the rear of the bike still looks good with the panniers removed.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
The Ninja 1100SX features a host of rider support technology dedicated to helping riders enjoy their machine’s sport riding performance to the fullest.
The Ninja 1100SX features a host of rider support technology dedicated to helping riders enjoy their machine’s sport riding performance to the fullest.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
Offering both control and comfort, the Ninja 1100SX’s relaxed riding position was designed to accommodate everything from city riding to touring to sport riding. This blend of comfort and control allows the rider to enjoy a variety of riding situations.
With longer 5th and 6th gears, riders can cruise at a lower rpm on the expressway, which adds to touring comfort and improves fuel economy.
With longer 5th and 6th gears, riders can cruise at a lower rpm on the expressway, which adds to touring comfort and improves fuel economy.
Improved fuel economy, longer 5th and 6th gears, and the addition of a handlebar-mounted USB Type-C outlet make longer journeys even more enjoyable. As before, an upright riding position, manageable power delivery, and surefooted handling offer the versatility for daily riding, while superb wind protection, Electronic Cruise Control and a seamlessly integrated accessory pannier system add to comfortable weekend escapes.
Improved fuel economy, longer 5th and 6th gears, and the addition of a handlebar-mounted USB Type-C outlet make longer journeys even more enjoyable. As before, an upright riding position, manageable power delivery, and surefooted handling offer the versatility for daily riding, while superb wind protection, Electronic Cruise Control and a seamlessly integrated accessory pannier system add to comfortable weekend escapes.
Based on the Ninja 1000SX’s proven and well-liked engine, the Ninja 1100SX’s engine displaces 1,099 cm3 and delivers 11.5 kgƒ·m of torque. The liquid-cooled, 4-stroke In-Line Four engine now pulls even more strongly in the low-to-mid rpm range— which riders will notice immediately and use often— while the high rpm performance remains robust to deliver all-around improved engine power feel and response.
Based on the Ninja 1000SX’s proven and well-liked engine, the Ninja 1100SX’s engine displaces 1,099 cm3 and delivers 11.5 kgƒ·m of torque. The liquid-cooled, 4-stroke In-Line Four engine now pulls even more strongly in the low-to-mid rpm range— which riders will notice immediately and use often— while the high rpm performance remains robust to deliver all-around improved engine power feel and response.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Styling that highlights the Ninja 1100SX’s Ninja family image and sport riding potential features streamlined looking fairings and a single-sided muffler.
Styling that highlights the Ninja 1100SX’s Ninja family image and sport riding potential features streamlined looking fairings and a single-sided muffler.
The Ninja 1100SX achieves both an increase in engine power and improved fuel economy at the same time thanks to revised engine components, longer 5th and 6th gears, and a lower rev limit.
The Ninja 1100SX achieves both an increase in engine power and improved fuel economy at the same time thanks to revised engine components, longer 5th and 6th gears, and a lower rev limit.
Wind protection afforded by the full-fairing bodywork is complemented by a windshield with four available positions. The windshield is adjustable by hand (without tools).
Wind protection afforded by the full-fairing bodywork is complemented by a windshield with four available positions. The windshield is adjustable by hand (without tools).
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, offering highly efficient braking while maintaining natural feel.
Kawasaki developed KIBS to take into account the particular handling characteristics of supersport motorcycles, ensuring highly efficient braking with minimal intrusion during hard sport riding. It is the first mass-production brake system to link the ABS ECU (Electronic Control Unit) and engine ECU. In addition front and rear wheel speed, KIBS monitors front brake caliper hydraulic pressure, throttle position, engine speed, clutch actuation and gear position. This diverse information is analysed to determine the ideal front brake hydraulic pressure. Through precise control, the large drops in hydraulic pressure seen on standard ABS systems can be avoided. Additionally, the tendency on supersport models for the rear wheel to lift under heavy braking can be suppressed and rear brake controllability can be maintained when downshifting.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
Engine type | Liquid-cooled, 4-stroke, in-line four |
---|---|
Compression ratio | 11.8:1 |
Valve system | DOHC, 16 valves |
Bore x stroke | 77.0 x 59.0 mm |
Displacement | 1,099 cm³ |
Fuel system | Fuel injection: 38 mm x 4 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Maximum power | 100.0 kW {136 PS} / 9,000 rpm |
---|---|
Maximum torque | 113.0 N•m {11.5 kgf•m} / 7,600 rpm |
CO2 emission | 126 g/km |
Fuel consumption | 5.6 l/100km |
CO2 emission 85 kW kit | 126.0 g/km |
Fuel consumption 85 kW kit | 5.6 l/100km |
Transmission | 6-speed, return shift |
Clutch | Wet, multi disc |
Primary reduction ratio | 1.528 (81/53) |
Gear ratios 1st | 2.600 (39/15) |
Gear ratios 2nd | 1.950 (39/20) |
Gear ratios 3rd | 1.600 (24/15) |
Gear ratios 4th | 1.389 (25/18) |
Gear ratios 5th | 1.217 (28/23) |
Gear ratios 6th | 1.069 (31/29) |
Final drive | Sealed chain |
Final reduction ratio | 2.800 (42/15) |
Frame type | Twin-tube aluminium |
---|---|
Trail | 98 mm |
Wheel travel front | 120 mm |
Wheel travel rear | 141 mm |
Tyre, front | 120/70 ZR17 M/C (58W) |
Tyre, rear | 190/50 ZR17 M/C (73W) |
L x W x H | 2,100 x 805 x 1,190 mm (1225 mm high position screen) |
Steering angle L/R | 31° / 31° |
Wheel base | 1,440 mm |
Ground clearance | 135 mm |
Fuel capacity | 19.0 litres |
Seat height | 835 mm |
Curb mass | 234 kg |
Front brake type | Dual semi-floating discs |
---|---|
Front brake diameter | Ø 300 mm |
Front brake caliper type | Brembo radial-mount, M4.32 monobloc, opposed 4-piston |
Rear brake type | Single disc |
Rear brake diameter | Ø 260 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted fork with compression and rebound damping, and spring preload adjustability |
Front suspension diameter | Ø 41 mm |
Rear suspension type | Horizontal Back-link, Öhlins S46 gas-charged rear shock with rebound damping adjustability and remote spring preload adjustability |
Inpage Navigation Section: Accessories
Standard shape double bubble smoke windshield for wind protection and improved looks. With Kawasaki logo and EU type approval.
Read MoreTo keep your battery in good shape during the winter months and make a fresh start in the spring, Kawasaki offers a compact Smart battery charger. The Kawasaki Smart Battery Charger can charge and maintain traditional lead-acid, gel and new Lithium/LiFePo4 batteries.
Give passengers room to stretch out. Seat is 25mm thicker than the OEM Passenger Seat.
Comfort Seat provides long-distance support and comfort for rider and passenger.
Clear touring screen made with optically correct polycarbonate plastic for improved visibility and Quantum hard coating helps to protect against scratching 114 mm taller and 152 mm wider than stock windscreen
Read MoreHelp protect your engine cases from tip over damage. Two individual protectors feature hi-strength adhesive backing for easy installation on the clutch and alternator.
Give your Kawasaki a more sporty look with the hexagonal shaped Titanium Akrapovič muffler.
This lightweight slip-on is designed to be used together with our pannier system.
Consists of a stainless steel link pipe, stainless steel inlet/ titanium muffler outer sleeve, carbon fiber end cap, Carbon fiber muffler clamp and dual Akrapovič and Ninja 1000SX branded laser etched logo.
Carbon fiber heatshield set and fitting kit included.
Complies with the applicable European standards.
Give your Kawasaki Ninja 1000SX a more sporty look with the hexagonal shaped Carbon Akrapovič muffler. This lightweight slip-on is designed to be used together with our pannier system. Consists of a stainless steel inlet, carbon fiber muffler outer sleeve, carbon fiber end cap, Carbon fiber muffler clamp and a Co-branded Akrapovič heat resistant sticker. Carbon fiber heatshield set and fitting kit included. Complies with the applicable European standards.
Read MoreLarge scratch-resistant smoke windscreen, designed to provide additional rider comfort and styling. Kawasaki branded product, developed by Kawasaki and fully road legal.
For mounting to the Versys 650, the windscreen bracket kit (999941689) is required.
Black adhesive gel resin tank pads help protect paint finish from scratches and ordinary wear and tear.
Zippered black nylon liners make it easy to pack your cargo and drop into the locking panniers.
Once you’ve arrived at your destination, just grab your pannier inner bags so you can leave the panniers on your motorcycle and get going.
Help protect your motorcycle from tip-over damage.
The Lock Cylinder Set utilizes the ignition key to create a One Key System for both the panniers and the vehicle.
Strong durable multi layered fabric with taped seams. Heat resistant honeycomb till 120 degrees Celcius. Subtle Branding.
100% Polyester. With multi usable packing backpack.
(XL + top case cover has extra compartment that can be zipped open to make room for top case)
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
Quick release 56L pannier set that will hold most full-face helmets. Panniers designed to attached to handgrips and footrest and give a clean sporty look when removed. Narrow mounting width of 93cm and suitable for high speed
cruising.
Set requires:
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
Discover your next adventure
Ride challenge level. Plan windy and hilly roads
Discover the world's best curated riding routes, exclusively
Updates via Wi-Fi®. No computer needed
Discover, personalize and enjoy stunning riding routes with MyDrive
Compatible with Siri and Google Now™
Smartphone messages read aloud, hands-free calling
Lifetime* Worldwide Maps, TomTom Traffic and Services
Double the processing speed and five times faster start-up
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
